2ZR-FE ENGINE CONTROL  THROTTLE BODY  REMOVAL


PROCEDURE

Hide 11212 2.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 17705 3.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

a.

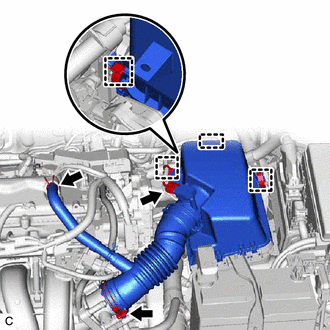

A307558

Disconnect the mass air flow meter sub-assembly connector and disengage the 2 wire harness clamps.


b.

Disengage the 2 air cleaner cap clamps.


c.

Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.


d.

Loosen the hose clamp and remove the air cleaner cap with air cleaner hose from the throttle body assembly.


Hide 22210 4.REMOVE THROTTLE BODY ASSEMBLY

a.

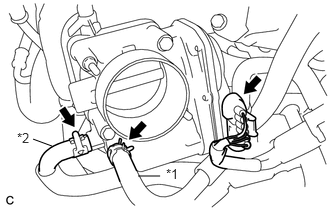

A155420C02
1.438,1.833 1.667,1.833 false 0.344,1.448 0.542,1.521 false 1.729,1.729 1.938,1.906 0.208,0.177 10 true *1 0.177,1.354 0.385,1.531 0.208,0.177 10 false *2
*1 No. 1 Water By-pass Hose
*2 No. 2 Water By-pass Hose


Disconnect the throttle body assembly connector.


b.

Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the throttle body assembly.


c.

w/ Stud Bolt:

i.

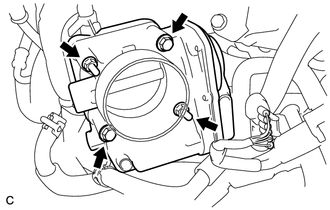

A155419

Remove the 2 bolts, 2 nuts and throttle body assembly from the intake manifold.

NOTICE:

If the throttle body assembly has been struck or dropped, replace it.




d.

w/o Stud Bolt:

i.
A288483

Remove the 4 bolts and throttle body assembly from the intake manifold.

NOTICE:

If the throttle body assembly has been struck or dropped, replace it.




Hide 22271 5.REMOVE THROTTLE BODY GASKET

a.

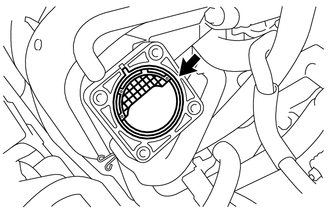

A287570

Remove the throttle body gasket from the intake manifold.
