SUPPLEMENTAL RESTRAINT SYSTEMS  SPIRAL CABLE  INSPECTION


PROCEDURE

Hide 84306 1.INSPECT SPIRAL CABLE SUB-ASSEMBLY

a.

Visually check for defects on the spiral cable sub-assembly.

i.

The defects are as follows:

·

Scratches

·

Small cracks

·

Dents

·

Chips

·

Cracks or other damage to the connector

OK:

No defects are found.



If any defects are found, replace the spiral cable sub-assembly with a new one.



b.

Check the spiral cable sub-assembly.

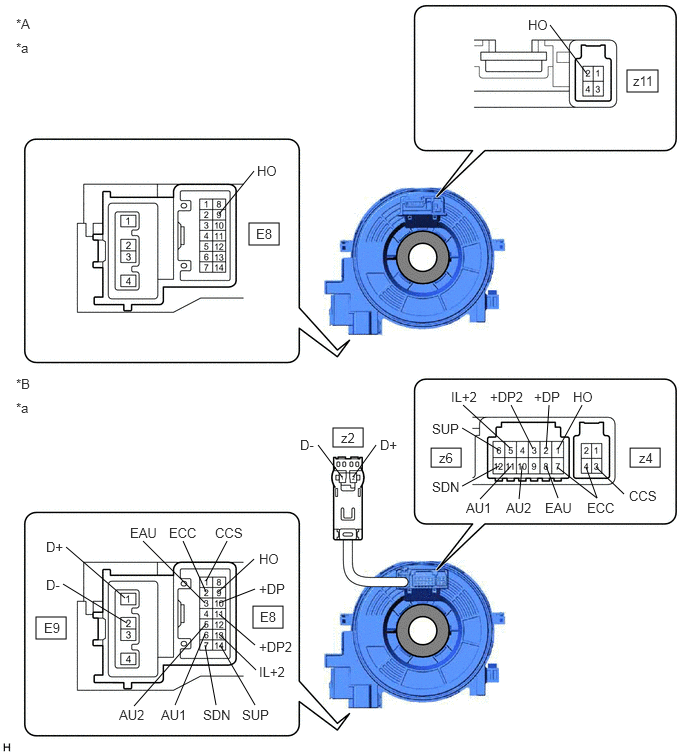

C355531C01
2.594,2.323 2.906,2.552 0.313,0.229 6.531,0.729 6.854,0.958 0.323,0.229 0.375,6.427 0.688,6.656 0.313,0.229 2.635,6.313 2.948,6.542 0.313,0.229 3.469,4.458 3.781,4.656 0.313,0.198 6.563,4.667 6.875,4.865 0.313,0.198 4.49,4.667 4.802,4.865 0.313,0.198 2.281,2.229 2.646,1.781 false 5.729,0.26 6.115,0.771 false 1.302,6.229 0.688,5.698 false 1.323,6.49 0.656,6.083 false 2.146,6.052 2.365,5.635 false 2.146,6.167 1.906,5.635 false 2.135,6.281 1.49,5.635 false 2.146,6.5 1.396,7.354 false 2.135,6.604 1.823,7.344 false 2.135,6.719 2.25,7.344 false 2.292,6.719 2.656,7.344 false 2.281,6.604 2.667,6.979 false 2.281,6.396 2.656,6.719 false 2.281,6.281 2.656,6.135 false 2.271,6.167 2.646,5.823 false 3.677,4.969 3.917,4.635 false 3.563,4.969 3.313,4.635 false 6.5,5.146 6.208,4.865 false 6.104,4.865 6.219,5.188 6.219,5.188 5.802,4.865 false 5.813,5.188 5.688,4.854 false 5.406,5.198 5.438,4.854 false 5,5.198 5.323,4.854 false 4.813,5.063 5.198,4.854 false 4.813,4.458 5.198,4.688 false 4.823,4.219 5.313,4.667 false 5.323,4.219 5.552,4.677 false 5.719,4.219 5.688,4.677 false 6.063,4.219 5.813,4.677 false 0.167,0.167 0.75,0.833 0.583,0.667 10 false *A 0.167,3.917 0.917,4.75 0.75,0.833 10 false *B 0.167,0.417 0.5,1 0.333,0.583 10 false *a 0.167,4.167 0.5,4.75 0.333,0.583 10 false *a 2.677,1.698 3.115,2.125 0.438,0.427 10 false HO 2.667,2.354 3.104,2.781 0.438,0.427 10 false E8 6.594,0.76 7.031,1.188 0.438,0.427 10 false z11 5.5,0.177 5.938,0.604 0.438,0.427 10 false HO 0.458,6.458 0.896,6.885 0.438,0.427 10 false E9 0.479,5.615 0.917,6.042 0.438,0.427 10 false D+ 0.479,6.01 0.917,6.438 0.438,0.427 10 false D- 2.708,6.344 3.146,6.771 0.438,0.427 10 false E8 2.24,5.469 2.677,5.896 0.438,0.427 10 false CCS 1.76,5.469 2.198,5.896 0.438,0.427 10 false ECC 1.354,5.469 1.792,5.896 0.438,0.427 10 false EAU 1.24,7.365 1.677,7.792 0.438,0.427 10 false AU2 1.677,7.365 2.115,7.792 0.438,0.427 10 false AU1 2.115,7.365 2.552,7.792 0.438,0.427 10 false SDN 2.521,7.365 2.958,7.792 0.438,0.427 10 false SUP 2.698,6.917 3.135,7.344 0.438,0.427 10 false IL+2 2.698,6.656 3.135,7.083 0.438,0.427 10 false +DP2 2.698,6.052 3.135,6.479 0.438,0.427 10 false +DP 2.698,5.74 3.135,6.167 0.438,0.427 10 false HO 3.552,4.479 3.99,4.906 0.438,0.427 10 false z2 3.125,4.552 3.563,4.979 0.438,0.427 10 false D- 3.958,4.552 4.396,4.979 0.438,0.427 10 false D+ 6.656,4.688 7.094,5.115 0.438,0.427 10 false z4 4.573,4.688 5.01,5.115 0.438,0.427 10 false z6 6.552,5.083 6.99,5.51 0.438,0.427 10 false CCS 6.115,5.208 6.552,5.635 0.438,0.427 10 false ECC 5.677,5.208 6.115,5.635 0.438,0.427 10 false EAU 5.271,5.208 5.708,5.635 0.438,0.427 10 false AU2 4.854,5.208 5.292,5.635 0.438,0.427 10 false AU1 4.5,4.99 4.938,5.417 0.438,0.427 10 false SDN 4.5,4.385 4.938,4.813 0.438,0.427 10 false SUP 4.698,4.052 5.135,4.479 0.438,0.427 10 false IL+2 5.104,4.052 5.542,4.479 0.438,0.427 10 false +DP2 5.563,4.052 6,4.479 0.438,0.427 10 false +DP 5.969,4.052 6.406,4.479 0.438,0.427 10 false HO
*A w/o Steering Pad Switch *B w/ Steering Pad Switch
*a Component without harness connected
(Spiral Cable Sub-assembly) 		- -
V100144

Interlock - -


NOTICE:
·

When rotating the spiral cable sub-assembly, make sure to push on the interlock indicated in the illustration to release the interlock mechanism.

·

As the spiral cable sub-assembly may break, do not rotate the spiral cable sub-assembly more than the specified amount.



i.

Set the spiral cable sub-assembly to the center position.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>SPIRAL CABLE>INSTALLATION


ii.

Measure the resistance between each terminal of the spiral cable sub-assembly according to the value(s) in the table below.

Standard Resistance:
w/o Steering Pad Switch:
Tester Connection Condition Specified Condition
E8-9 (HO) - z11-2 (HO) Always 3 Ω or less

w/ Steering Pad Switch:
Tester Connection Condition Specified Condition
E8-1 (CCS) - z4-3 (CCS) Always 3 Ω or less
E8-2 (ECC) - z4-4 (ECC) Always 3 Ω or less
E8-2 (ECC) - z6-7 (ECC) Always 3 Ω or less
E8-3 (EAU) - z6-8 (EAU) Always 3 Ω or less
E8-5 (AU2) - z6-10 (AU2) Always 3 Ω or less
E8-6 (AU1) - z6-11 (AU1) Always 3 Ω or less
E8-7 (SDN) - z6-12 (SDN) Always 3 Ω or less
E8-9 (HO) - z6-1 (HO) Always 3 Ω or less
E8-10 (+DP) - z6-2 (+DP) Always 3 Ω or less
E8-11 (+DP2) - z6-3 (+DP2) Always 3 Ω or less
E8-13 (IL+2) - z6-5 (IL+2) Always 3 Ω or less
E8-14 (SUP) - z6-6 (SUP) Always 3 Ω or less
E9-1 (D+) - z2-2 (D+) Always Below 1 Ω
E9-2 (D-) - z2-1 (D-) Always Below 1 Ω



iii.

After setting the spiral cable sub-assembly to the center position, rotate the spiral cable sub-assembly 2.5 times clockwise, and measure the resistance according to the value(s) in the table below. Then rotate the spiral cable sub-assembly 5 times counterclockwise, and measure the resistance according to the value(s) in the table below.

Standard Resistance:
w/o Steering Pad Switch:
Tester Connection Condition Specified Condition
E8-9 (HO) - z11-2 (HO) Always 3 Ω or less

w/ Steering Pad Switch:
Tester Connection Condition Specified Condition
E8-1 (CCS) - z4-3 (CCS) Always 3 Ω or less
E8-2 (ECC) - z4-4 (ECC) Always 3 Ω or less
E8-2 (ECC) - z6-7 (ECC) Always 3 Ω or less
E8-3 (EAU) - z6-8 (EAU) Always 3 Ω or less
E8-5 (AU2) - z6-10 (AU2) Always 3 Ω or less
E8-6 (AU1) - z6-11 (AU1) Always 3 Ω or less
E8-7 (SDN) - z6-12 (SDN) Always 3 Ω or less
E8-9 (HO) - z6-1 (HO) Always 3 Ω or less
E8-10 (+DP) - z6-2 (+DP) Always 3 Ω or less
E8-11 (+DP2) - z6-3 (+DP2) Always 3 Ω or less
E8-13 (IL+2) - z6-5 (IL+2) Always 3 Ω or less
E8-14 (SUP) - z6-6 (SUP) Always 3 Ω or less
E9-1 (D+) - z2-2 (D+) Always Below 1 Ω
E9-2 (D-) - z2-1 (D-) Always Below 1 Ω



iv.

After setting the spiral cable sub-assembly to the center position, rotate the spiral cable sub-assembly 2.5 times clockwise. Then while rotating the spiral cable sub-assembly 5 times counterclockwise, measure the resistance according to the value(s) in the table below.

Standard Resistance:
w/o Steering Pad Switch:
Tester Connection Condition Specified Condition
E8-9 (HO) - z11-2 (HO) Always 3 Ω or less

w/ Steering Pad Switch:
Tester Connection Condition Specified Condition
E8-1 (CCS) - z4-3 (CCS) Always 3 Ω or less
E8-2 (ECC) - z4-4 (ECC) Always 3 Ω or less
E8-2 (ECC) - z6-7 (ECC) Always 3 Ω or less
E8-3 (EAU) - z6-8 (EAU) Always 3 Ω or less
E8-5 (AU2) - z6-10 (AU2) Always 3 Ω or less
E8-6 (AU1) - z6-11 (AU1) Always 3 Ω or less
E8-7 (SDN) - z6-12 (SDN) Always 3 Ω or less
E8-9 (HO) - z6-1 (HO) Always 3 Ω or less
E8-10 (+DP) - z6-2 (+DP) Always 3 Ω or less
E8-11 (+DP2) - z6-3 (+DP2) Always 3 Ω or less
E8-13 (IL+2) - z6-5 (IL+2) Always 3 Ω or less
E8-14 (SUP) - z6-6 (SUP) Always 3 Ω or less
E9-1 (D+) - z2-2 (D+) Always Below 1 Ω
E9-2 (D-) - z2-1 (D-) Always Below 1 Ω


If the result is not as specified, replace the spiral cable sub-assembly.
