HEATING / AIR CONDITIONING  AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System)  B14B2  Lost Communication with Front Panel LIN


DESCRIPTION

The air conditioning control assembly communicates with the air conditioning amplifier assembly via LIN communication.

If the LIN communication system malfunctions, the air conditioning amplifier assembly does not operate even if the air conditioning control assembly is operated.

DTC No. Detection Item DTC Detection Condition Trouble Area Memory
B14B2 Lost Communication with Front Panel LIN Lost communication with air conditioning control assembly
·

Harness or connector between air conditioning control assembly and IG power source

·

Harness or connector between air conditioning control assembly and body ground

·

LIN communication system

·

Air conditioning control assembly

·

Air conditioning amplifier assembly


Memorized
(10 sec. or more)*

*: The air conditioning amplifier assembly stores this DTC if the malfunction has occurred for the period of time indicated in the brackets.

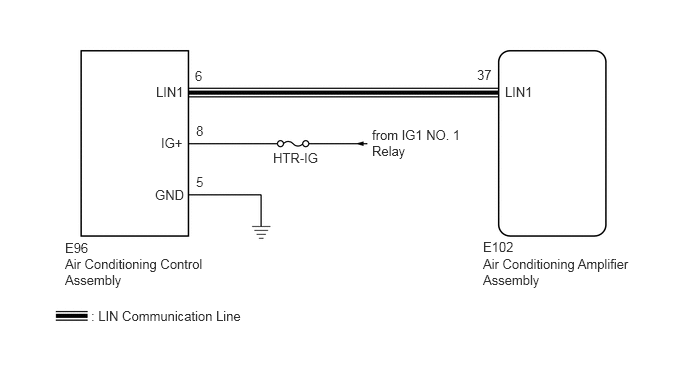

WIRING DIAGRAM

E282266E30
1.625,0.875 2.24,1.073 0.615,0.198 10 false LIN1 2.031,0.708 2.188,0.906 0.156,0.198 10 false 6 1.677,1.406 2.135,1.604 0.458,0.198 10 false IG+ 2.042,1.281 2.198,1.479 0.156,0.198 10 false 8 1.615,1.948 2.073,2.146 0.458,0.198 10 false GND 2.042,1.813 2.198,2.01 0.156,0.198 10 false 5 2.844,1.563 3.76,1.76 0.917,0.198 10 false HTR-IG 3.875,1.323 4.844,1.76 0.969,0.438 10 false from IG1 NO. 1 Relay 5.26,0.875 5.875,1.073 0.615,0.198 10 false LIN1 4.969,0.698 5.281,0.896 0.313,0.198 10 false 37 5.031,2.49 5.49,2.688 0.458,0.198 10 false E102 5.031,2.667 6.604,3.167 1.573,0.5 10 false Air Conditioning Amplifier Assembly 0.677,2.5 1.135,2.698 0.458,0.198 10 false E96 0.677,2.667 2.146,3.115 1.469,0.448 10 false Air Conditioning Control Assembly 0.948,3.208 4.615,3.406 3.667,0.198 10 false : LIN Communication Line

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuse for circuits related to this system before performing the following procedure.


PROCEDURE

1.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL ASSEMBLY - IG POWER SOURCE)
a.

Disconnect the E96 air conditioning control assembly connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
E96-8 (IG+) - Body ground Ignition switch off Below 1 V
E96-8 (IG+) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL ASSEMBLY - BODY GROUND)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

2.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING CONTROL ASSEMBLY - BODY GROUND)
a.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E96-5 (GND) - Body ground Always Below 1 Ω



Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - AIR CONDITIONING CONTROL ASSEMBLY)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

3.CHECK HARNESS AND CONNECTOR (AIR CONDITIONING AMPLIFIER ASSEMBLY - AIR CONDITIONING CONTROL ASSEMBLY)
a.

Disconnect the E102 air conditioning amplifier assembly connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
E96-6 (LIN1) - E102-37 (LIN1) Always Below 1 Ω
E96-6 (LIN1) or E102-37 (LIN1) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.REPLACE AIR CONDITIONING CONTROL ASSEMBLY

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.REPLACE AIR CONDITIONING CONTROL ASSEMBLY
a.

Replace the air conditioning control assembly.

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING PANEL(for Automatic Air Conditioning System)>REMOVAL

HINT:

Since the air conditioning control assembly cannot be inspected while it is removed from the vehicle, replace the air conditioning control assembly with a new or known good one and check that the condition returns to normal.


OK:

Air conditioning control assembly operation returns to normal.



Result:
Result Proceed to
OK A
NG (When troubleshooting according to Problem Symptoms Table) B
NG (When troubleshooting according to the DTC) C



A

END (AIR CONDITIONING CONTROL ASSEMBLY WAS DEFECTIVE)

B

PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System)>PROBLEM SYMPTOMS TABLE


C

REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY

Click hereVehicle Interior>HEATING / AIR CONDITIONING>AIR CONDITIONING AMPLIFIER>REMOVAL
