SUPPLEMENTAL RESTRAINT SYSTEMS  FRONT PASSENGER AIRBAG ASSEMBLY  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

Click hereVehicle Interior>SUPPLEMENTAL RESTRAINT SYSTEMS>AIRBAG SYSTEM>PRECAUTION


NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 62212B 2.REMOVE FRONT PILLAR GARNISH ASSEMBLY LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 82142A 3.DISCONNECT NO. 2 INSTRUMENT PANEL WIRE

a.

Check that the ignition switch is off.


b.

Check that the cable is disconnected from the negative (-) battery terminal.

CAUTION:

Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.



c.
B356662C01
0.646,2.417 0.646,2.167 0.646,2.167 1.948,2.167 false 1.719,2.177 1.719,2.417 false 1.969,2.073 2.281,2.271 0.313,0.198 10 false *a
*a Slider

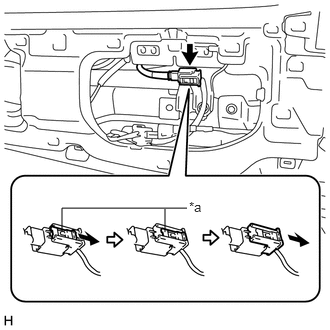

Slide the slider to release the lock, and then disconnect the connector.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.



Hide 4.REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 73960A 5.REMOVE INSTRUMENT PANEL PASSENGER AIRBAG ASSEMBLY

CAUTION:

When storing the instrument panel passenger airbag assembly, keep the airbag deployment side facing upward.


a.
B356664

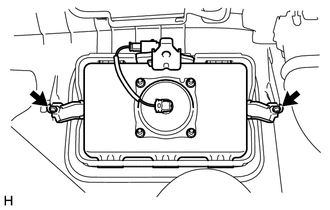

Remove the 2 screws.


b.
B356665

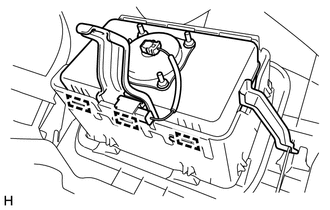

Lean the upper instrument panel assembly and disengage the 3 hooks.


c.
B356666

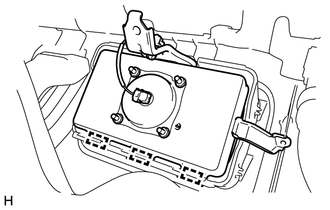

Disengage the 3 hooks to remove the instrument panel passenger airbag assembly from the upper instrument panel assembly.


Hide 82142A 6.REMOVE NO. 2 INSTRUMENT PANEL WIRE

a.
B324485C05
1.083,0.625 0.552,0.625 true 1.698,1.75 1.917,2.333 true 1.406,1.708 0.51,1.99 true 0.333,1.927 0.646,2.083 0.313,0.156 10 false *b 1.906,2.365 2.229,2.521 0.323,0.156 10 true *a 0.354,0.552 0.677,0.708 0.323,0.156 10 false *c

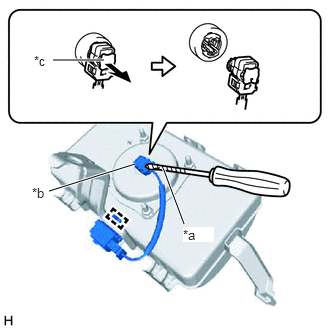

*a Protective Tape
*b Airbag Connector
*c Airbag Connector Lock


Disengage the clamp.


b.

Using a screwdriver with its tip wrapped with protective tape, release the airbag connector lock.


c.

Disconnect the airbag connector to remove the No. 2 instrument panel wire from the instrument panel passenger airbag assembly.

NOTICE:

When disconnecting any airbag connector, take care not to damage the airbag wire harness.
