THEFT DETERRENT / KEYLESS ENTRY  SECURITY INDICATOR LIGHT ASSEMBLY  REMOVAL


PROCEDURE

Hide 55011A 1.REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 55405B 2.REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>UPPER INSTRUMENT PANEL>REMOVAL

Hide 83950M 3.REMOVE SECURITY INDICATOR LIGHT (TELLTALE LIGHT ASSEMBLY)

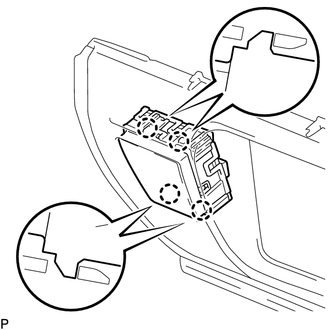

B372466

a.

Disengage the 4 claws and remove the security indicator light (telltale light assembly).
