2ZR-FE ENGINE CONTROL HEATED OXYGEN SENSOR REMOVAL
PROCEDURE
58816B
1.REMOVE CONSOLE BOX INSERT
2.DISCONNECT HEATED OXYGEN SENSOR CONNECTOR
a.
Remove the clip.
b.
Turn back the floor carpet.
c.

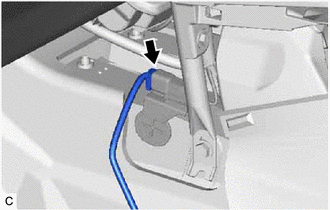

Disconnect the heated oxygen sensor connector.
89465
3.REMOVE HEATED OXYGEN SENSOR
a.
1.771,0.76 1.635,0.531
false
1.802,0.719 2.042,0.917
0.24,0.198
10
false
*1

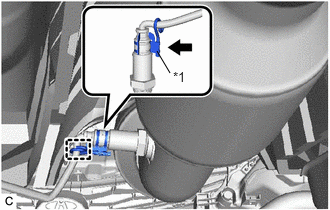

| *1 | Wire Harness Clamp Bracket |
Disengage the clamp and remove the wire harness clamp bracket from the heated oxygen sensor.
b.
2.854,1.177 3.219,0.385
3.219,0.385 2.896,0.385
false
2.729,0.281 3.042,0.438
0.313,0.156
10
false
*a

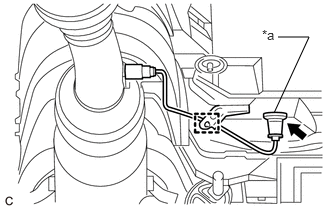

| *a | Heated Oxygen Sensor Grommet |
Disengage the clamp.
c.
Disengage the heated oxygen sensor grommet from the vehicle body.
d.
0.625,1.25 0.969,0.74
true
0.448,1.333 0.802,1.531
0.354,0.198
10
true

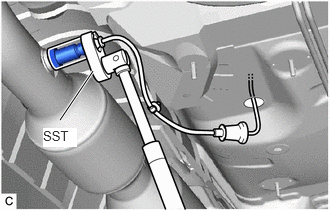

SST
Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).
- SST
- 09224-00010
- NOTICE:
-
If the heated oxygen sensor has been struck or dropped, replace it.
