U441E AUTOMATIC TRANSMISSION / TRANSAXLE  PARK / NEUTRAL POSITION SWITCH  REMOVAL


PROCEDURE

Hide 51442C 1.REMOVE ENGINE UNDER COVER LH

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 33820B 2.DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

a.

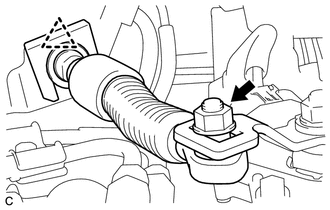

C305042

Remove the nut to disconnect the transmission control cable assembly from the transmission control shaft lever.


b.

Remove the clip to disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.


Hide 84540 3.REMOVE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

a.

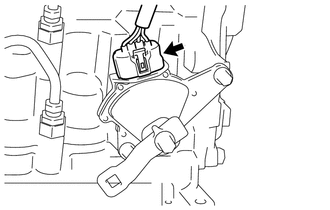

C286301

Disconnect the park/neutral position switch assembly connector.


b.
C305044

Remove the nut, washer and transmission control shaft lever from the manual valve lever shaft.


c.
C286303

Using a screwdriver, pry back the tabs of the lock plate.


d.

Remove the lock nut and lock plate from the park/neutral position switch assembly.


e.
C286305

Remove the 2 bolts and park/neutral position switch assembly from the automatic transaxle assembly.
