AUDIO / VIDEO AMPLIFIER ANTENNA INSTALLATION
PROCEDURE
86300B
1.INSTALL NO. 1 AMPLIFIER ANTENNA ASSEMBLY
a.

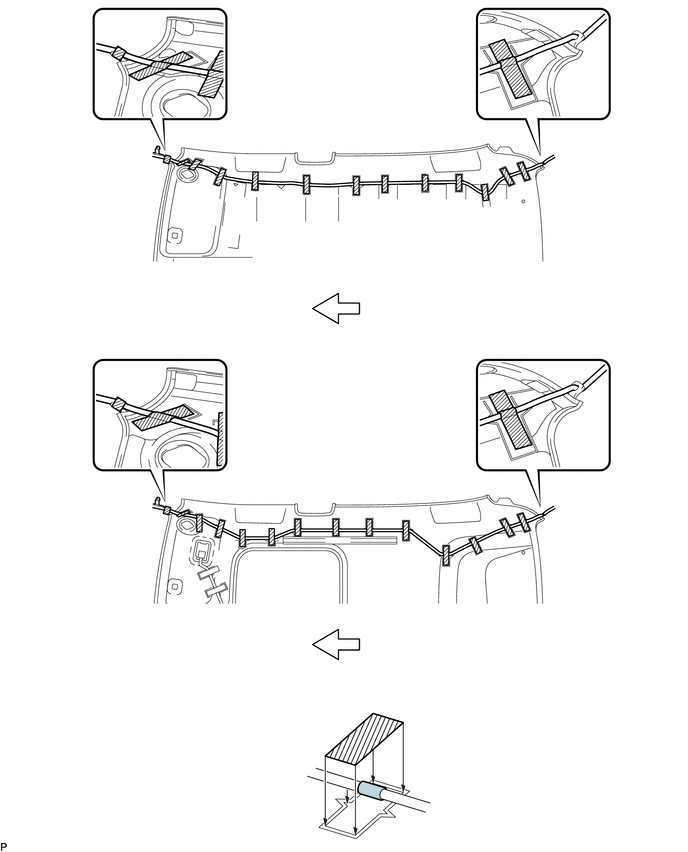

Align the No. 1 amplifier antenna assembly positioning tape with the markings on the roof headlining assembly.
6.083,0.917 6,0.417
true
6.083,4.583 6,4.083
true
4.25,8.667 4,8.5
true
4.833,2.333 5.052,2.042
true
4.417,6.083 4.635,5.833
true
0.25,0.25 0.625,0.49
0.375,0.24
12
false
*A
0.25,3.927 0.625,4.167
0.375,0.24
12
false
*B
6.021,0.917 6.333,1.115
0.313,0.198
10
false
*a
6,4.583 6.313,4.781
0.313,0.198
10
false
*a
4.271,8.583 4.583,8.781
0.313,0.198
10
false
*b
4.688,2.333 5,2.531
0.313,0.198
10
false
*c
4.271,6.083 4.583,6.281
0.313,0.198
10
false
*c
| *A | w/o Sliding Roof | *B | w/ Sliding Roof |
| *a | Notch | *b | Marking |
| *c | Adjustment Area | - | - |
|
Positioning Tape |
|
Adhesive Tape |
|
Front | - | - |
b.
Install the No. 1 amplifier antenna assembly to the roof headlining assembly with new adhesive tape.
- NOTICE:
- ·
Apply the tape securely in place.
·Do not touch the adhesive surface when applying the tape to prevent adhesion failure.
- HINT:
-
Secure the extra length of the No. 1 amplifier antenna assembly in the adjustment area.
c.
Engage the No. 1 amplifier antenna assembly to the notch of the roof headlining assembly.
2.INSTALL ROOF HEADLINING ASSEMBLY
