U441E AUTOMATIC TRANSMISSION / TRANSAXLE TORQUE CONVERTER AND DRIVE PLATE INSPECTION

PROCEDURE

Hide Display 1.INSPECT TORQUE CONVERTER ASSEMBLY

Inspect the one-way clutch.

0,0 3.427,0 false

	Difficult
	Smooth

Press on the spline of the stator with a finger and rotate the spline. Check that the spline rotates smoothly when turned clockwise and rotates with difficulty when turned counterclockwise.

If necessary, clean the torque converter assembly and recheck the one-way clutch. Replace the torque converter assembly if the one-way clutch still fails the inspection.

0.083,0 0.5,0.385 0.417,0.385 10 *a 1.677,3.26 1.865,3.417 0.188,0.156 10 *b

*a	Sample showing maximum allowable amount of powder in ATF
*b	Full Scale

Inspect the torque converter assembly.

If any of the following problems are present, replace the torque converter assembly.

Malfunction:

A metallic sound is emitted from the torque converter assembly during the stall test or when the shift lever is moved to N.

The one-way clutch turns smoothly or locks in both directions.

The amount of powder in the ATF is more than the sample shown in the illustration (refer to the sample).

HINT:: The sample shows approximately 0.025 liters (0.026 US qts, 0.022 Imp. qts) of ATF in a Petri dish, which has been taken from a torque converter assembly.

Replace the ATF in the torque converter assembly.

HINT:: If the ATF is discolored or has a foul odor, stir the ATF in the torque converter assembly and drain it before replacing the ATF.

Clean and check the transmission oil cooler and oil pipe line.

HINT:: ·

If the torque converter assembly is inspected or the ATF is replaced, it is necessary to clean the transmission oil cooler and oil pipe line.

·

Apply compressed air of 196 kPa (2.0 kgf/ cm², 28 psi) into the water by-pass hose.

·

If a large amount of powder is found in the ATF, add new ATF using a bucket pump and clean the transmission oil cooler and oil pipe line again.

·

If the ATF is cloudy, inspect the transmission oil cooler.

2.458,1.667 2.927,1.667 true 0.375,0.198 0.688,0.396 0.313,0.198 10 false *a 1.74,0.198 2.052,0.396 0.313,0.198 10 false *b 2.958,1.542 3.271,1.74 0.313,0.198 10 false *c

*a	Correct
*b	Incorrect
*c	Bottom is damaged

Prevent deformation of the torque converter assembly and damage to the oil pump gear.

NOTICE:: Make sure that all of the bolts are the same length and that the specified bolts are used.

HINT:: If there is any damage to the tip of a bolt for the torque converter assembly or to the bottom of a bolt hole, replace the bolt and torque converter assembly.

Hide Display 2.INSPECT DRIVE PLATE

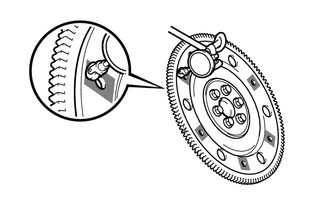

Check the drive plate for damage.

1.615,0.573 1.771,0.771 0.156,0.198 10 false 1 2.073,0.156 2.229,0.354 0.156,0.198 10 false 2 2.781,0.635 2.938,0.833 0.156,0.198 10 false 3 3.01,1.521 3.167,1.719 0.156,0.198 10 false 4 2.563,1.958 2.719,2.156 0.156,0.198 10 false 5 1.844,1.479 2,1.677 0.156,0.198 10 false 6

Measurement Point

Set up a dial indicator and measure the runout at the 6 areas on the drive plate surface that contact the torque converter assembly.

Maximum Runout:: 0.30 mm (0.0118 in.)

If the runout is more than the maximum or the drive plate is damaged, replace the drive plate.
