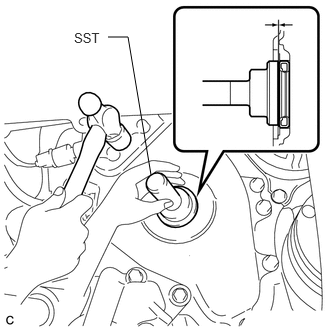

Using SST and a hammer, tap in the timing chain cover oil seal until its surface is flush with the timing chain cover sub-assembly edge.

SST

09223-22010

NOTICE:

·

Wipe off excess grease from the crankshaft.

·

Do not tap in the timing chain cover oil seal at an angle.

HINT:

Timing chain cover oil seal tap in depth: - 1.0 to 1.0 mm (-0.0394 to 0.0394 in.)

1.479,1.813 2.427,0.51 2.427,0.51 1.823,1.75 true 0.531,2.385 0.719,2.552 0.188,0.167 10 *a 2.229,3.125 2.417,3.292 0.188,0.167 10 *b 2.375,0.313 2.667,0.458 0.292,0.146 10 SST

*a	Turn
*b	Hold

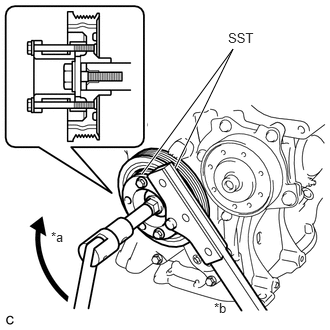

Using SST, hold the crankshaft pulley in place and tighten the crankshaft pulley set bolt.

SST

09213-54015  09330-00021

Torque:

190 N*m (1937 kgf*cm, 140 ft.*lbf)

HINT:

Part number of installation bolt for SST (crankshaft pulley holding tool): 91551-00850 (quantity: 2)
