DOOR / HATCH  FRONT DOOR  ADJUSTMENT


CAUTION / NOTICE / HINT

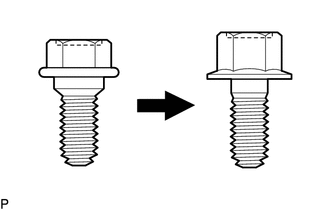

B350954
0.698,0.094 1.01,0.25 0.313,0.156 10 false *a 2.51,0.083 2.823,0.24 0.313,0.156 10 false *b
*a Centering Bolt
*b Standard Bolt


HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

·

Centering bolts are used to mount the door hinge to the vehicle body and door. The door cannot be adjusted with the centering bolts installed. Substitute the centering bolts with standard bolts when making adjustments.

·

Specified torque for standard bolts is shown in the standard bolt chart.

Click hereGeneral>SPECIFICATIONS>STANDARD BOLT>SPECIFIED TORQUE FOR STANDARD BOLTS



PROCEDURE

Hide 1.INSPECT FRONT DOOR

a.

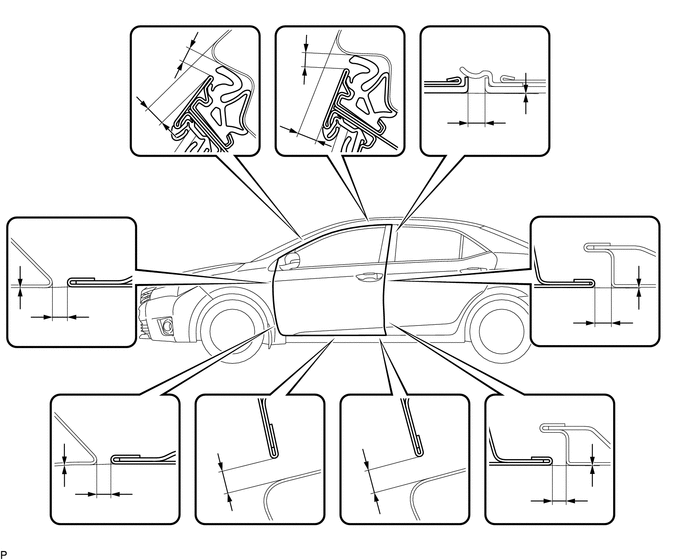

Check that the clearance measurements of areas "a" through "p" are within each standard range.

B350955
1.75,0.417 1.906,0.615 0.156,0.198 10 false a 1.479,1.198 1.635,1.396 0.156,0.198 10 false b 3,0.51 3.156,0.708 0.156,0.198 10 false c 3.094,1.427 3.25,1.625 0.156,0.198 10 false d 4.917,1.323 5.073,1.521 0.156,0.198 10 false e 5.292,1.01 5.448,1.208 0.156,0.198 10 false f 6.25,3.385 6.406,3.583 0.156,0.198 10 false g 6.49,3.031 6.646,3.229 0.156,0.198 10 false h 5.792,5.25 5.948,5.448 0.156,0.198 10 false i 6.01,4.865 6.167,5.063 0.156,0.198 10 false j 3.719,4.948 3.875,5.146 0.156,0.198 10 false k 2.219,4.948 2.375,5.146 0.156,0.198 10 false l 1.021,5.188 1.177,5.385 0.156,0.198 10 false m 0.771,4.854 0.927,5.052 0.156,0.198 10 false n 0.573,3.333 0.729,3.531 0.156,0.198 10 false o 0.271,3.01 0.427,3.208 0.156,0.198 10 false p

Standard Clearance
Area Measurement Area Measurement
a 3.7 to 6.7 mm (0.146 to 0.264 in.) b 6.3 to 9.3 mm (0.248 to 0.366 in.)
c 3.9 to 6.9 mm (0.154 to 0.272 in.) d 6.1 to 9.1 mm (0.240 to 0.358 in.)
e 3.5 to 6.5 mm (0.138 to 0.256 in.) f -1.4 to 1.6 mm (-0.0551 to 0.0630 in.)
g 3.0 to 5.4 mm (0.118 to 0.213 in.) h -1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
i 3.0 to 5.4 mm (0.118 to 0.213 in.) j -1.2 to 1.2 mm (-0.0472 to 0.0472 in.)
k 4.2 to 7.2 mm (0.165 to 0.283 in.) l 4.2 to 7.2 mm (0.165 to 0.283 in.)
m 2.4 to 5.4 mm (0.0945 to 0.213 in.) n -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)
o 2.4 to 5.4 mm (0.0945 to 0.213 in.) p -1.5 to 1.5 mm (-0.0591 to 0.0591 in.)


Hide 2.REMOVE FRONT WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide 53876A 3.REMOVE FRONT FENDER LINER

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Exterior>WIPER / WASHER>WASHER MOTOR>REMOVAL


Hide 53828K 4.REMOVE FRONT FENDER SIDE PANEL PROTECTOR

a.

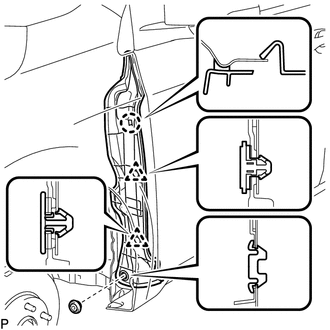

B362984
0.844,3.219 1.083,3.313 false 1.125,3.25 1.438,3.406 0.313,0.156 10 false *a
*a Hole Plug


Remove the hole plug.


b.

Remove the 2 clips.


c.

Disengage the claw and remove the front fender side panel protector.


Hide 5.ADJUST FRONT DOOR

NOTICE:

Make sure to turn the ignition switch off when adjusting door lock strikers.


a.

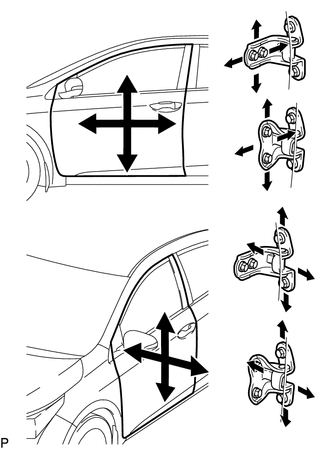

B350957

Using SST, loosen the hinge bolts on the vehicle body and adjust the door position.

SST
09812-00010


b.

Tighten the hinge bolts on the vehicle body after adjustment.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


c.

Loosen the hinge bolts on the door and adjust the door position.


d.

Tighten the hinge bolts on the door after adjustment.

Torque:
26 N*m (265 kgf*cm, 19 ft.*lbf)


e.

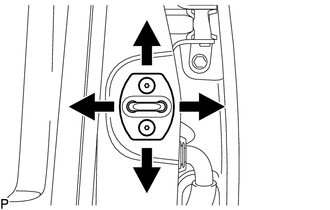

B373246

Using a T40 "TORX" socket wrench, slightly loosen the striker mounting screws.


f.

Using a brass bar and a hammer, hit the striker to adjust its position.


g.

Using a T40 "TORX" socket wrench, tighten the striker mounting screws after adjustment.

Torque:
23 N*m (235 kgf*cm, 17 ft.*lbf)


Hide 53828K 6.INSTALL FRONT FENDER SIDE PANEL PROTECTOR

a.

Engage the claw.


b.

Install the front fender side panel protector with 2 new clips.


c.

Install the hole plug.


Hide 53876A 7.INSTALL FRONT FENDER LINER

HINT:

Use the same procedure as for the RH side.

Click hereVehicle Exterior>WIPER / WASHER>WASHER MOTOR>INSTALLATION


Hide 8.INSTALL FRONT WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>INSTALLATION
