1.583,1.573 1.896,1.729 0.313,0.156 10 false *a 1.333,3 1.646,3.156 0.313,0.156 10 false *b 1.865,3.01 2.177,3.167 0.313,0.156 10 false *b

*a	Top
*b	30°

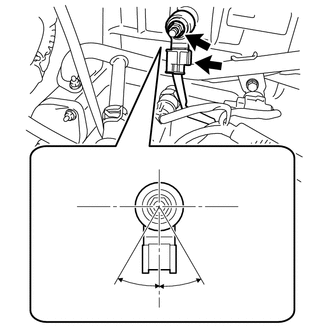

Install the knock control sensor to the cylinder block sub-assembly with the nut so that the knock control sensor installation position is as shown in the illustration.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

NOTICE:

·

If the knock control sensor has been struck or dropped, replace it.

·

Make sure that the knock control sensor is in the correct position.
