2NZ-FE ENGINE CONTROL  CRANKSHAFT POSITION SENSOR  REMOVAL


PROCEDURE

Hide 51441C 1.REMOVE ENGINE UNDER COVER RH

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 15100Q 2.REMOVE CRANKSHAFT POSITION SENSOR

a.

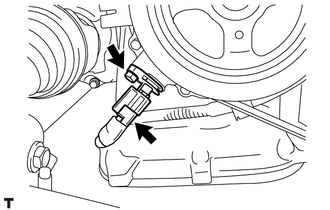

A173745

Disconnect the crankshaft position sensor connector.


b.

Remove the bolt and crankshaft position sensor from the oil pump assembly.

NOTICE:

If the crankshaft position sensor has been struck or dropped, replace it.
