55701J 1.REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

11212 2.REMOVE NO. 2 CYLINDER HEAD COVER

17705 3.REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

17701 4.REMOVE AIR CLEANER CASE SUB-ASSEMBLY

89467B 5.REMOVE AIR FUEL RATIO SENSOR

a.

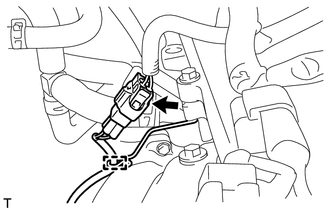

Disconnect the air fuel ratio sensor connector.

b.

Disengage the wire harness clamp.

c.

1.854,1.552 1.438,1.031 false 1.156,0.948 1.813,1.208 0.656,0.26 10 SST

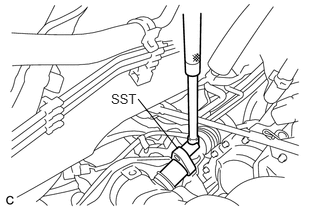

Using SST, remove the air fuel ratio sensor from the exhaust manifold.

SST

09224-00010

NOTICE:

If the air fuel ratio sensor has been struck or dropped, replace it.
