1.DRAIN ENGINE COOLANT

27020 2.REMOVE GENERATOR ASSEMBLY

16173 3.REMOVE WATER PUMP PULLEY

a.

1.854,1.583 2.021,2 2.021,2 2.198,2 false 2.24,1.917 2.979,2.146 0.74,0.229 10 false SST

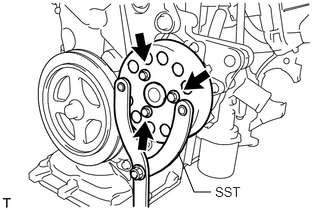

Using SST, hold the water pump pulley.

SST

09960-10010  (09962-01000, 09963-00700)

b.

Remove the 3 bolts and water pump pulley from the engine water pump assembly.

16100 4.REMOVE ENGINE WATER PUMP ASSEMBLY

a.

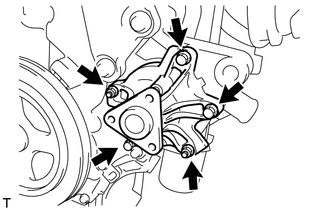

Remove the 3 bolts, 2 nuts and engine water pump assembly.

b.

Remove the gasket from the engine water pump assembly.
