SEAT BELT  FRONT SEAT OUTER BELT ASSEMBLY  DISPOSAL


CAUTION / NOTICE / HINT

CAUTION:

Before performing pre-disposal deployment of any SRS component, review and closely follow all applicable environmental and hazardous material regulations. Pre-disposal deployment may be considered hazardous material treatment.


HINT:

When scrapping vehicles equipped with a seat belt pretensioner or disposing of a seat belt (with a seat belt pretensioner), always deploy the seat belt pretensioner first in accordance with the procedure described below. If any abnormality occurs during deployment of the seat belt pretensioner, contact the SERVICE DEPARTMENT of the distributor.


PROCEDURE

Hide 73210 1.DISPOSE OF FRONT SEAT OUTER BELT ASSEMBLY (When Installed in Vehicle)

CAUTION:
·

Use gloves and safety glasses when handling a seat belt with a deployed pretensioner.

·

Always wash your hands with water after completing the operation.

·

Do not apply water, etc. to a seat belt with a deployed pretensioner.

·

When deploying a seat belt pretensioner, always use the specified SST (SRS airbag deployment tool). Perform the operation in a place away from electrical interference.



NOTICE:
·

When disposing of a seat belt with a pretensioner, never deploy the pretensioner in the customer's vehicle.

·

Never dispose of a seat belt with a pretensioner that has not been deployed.

·

The seat belt produces an exploding sound when the pretensioner deploys, so perform the operation outdoors where it will not disturb local residents.

·

When deploying a seat belt pretensioner, perform the operation at least 10 m (33 ft.) away from the seat belt.

·

Be sure to follow the procedure listed below when deploying a seat belt pretensioner.



a.

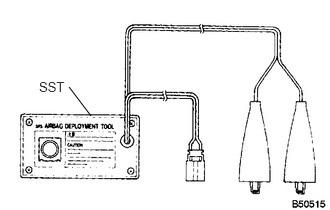

B050515N01
0.719,0.906 0.948,1.208 false 0.406,0.823 0.865,1.021 0.458,0.198 10 SST

Check the function of SST.

SST
09082-00700

CAUTION:

When deploying a seat belt pretensioner, always use the specified SST.


i.

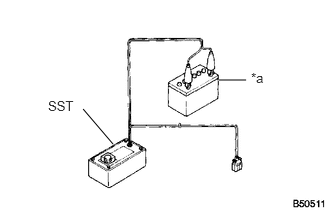

B050511C33
0.865,1.135 1.177,1.5 false 2.563,0.833 2.281,0.833 false 0.5,1.021 0.885,1.219 0.385,0.198 10 false SST 2.615,0.729 2.885,0.979 0.271,0.25 10 false *a
*a 12 V Battery


Connect the red clip of SST to the 12 V battery positive (+) terminal and the black clip to the 12 V battery negative (-) terminal.

HINT:

At this time, do not connect the yellow connector. It will be connected to the seat belt pretensioner in a later step.



ii.

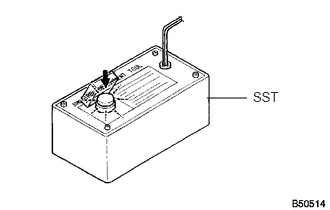

B050514N01
2.156,1.021 2.573,1.021 false 2.635,0.927 3,1.167 0.365,0.24 10 SST

Press the SST deployment switch and check that the LED of the SST deployment switch illuminates.

CAUTION:

If the LED is illuminated when the deployment switch is not pressed, SST may be malfunctioning. In this case, do not use the malfunctioning SST.




b.

Disconnect the seat belt pretensioner connector.

i.

Remove the center pillar lower garnish.

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL


ii.

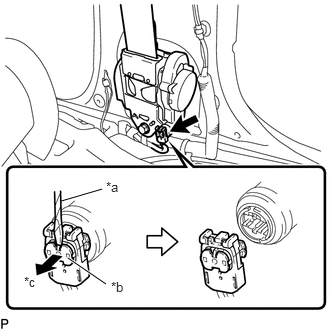

B373161C01
0.635,2.094 1.063,1.969 false 0.708,2.688 1.104,2.958 true 1.104,1.865 1.417,2.021 0.313,0.156 10 false *a 1.156,2.906 1.469,3.063 0.313,0.156 10 false *b 0.25,2.854 0.563,3.01 0.313,0.156 10 false *c
*a Protective Tape
*b Locking Button
*c Release


Using a screwdriver, pull out the locking button to release the lock and disconnect the pretensioner connector as shown in the illustration.

HINT:

Tape the screwdriver tip before use.




c.

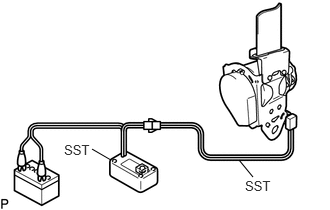

B373163N01
2.49,1.667 2.635,1.844 false 0.958,1.552 1.156,1.667 false 2.552,1.854 3.01,2.052 0.458,0.198 10 false SST 0.667,1.479 1.125,1.677 0.458,0.198 10 false SST

Connect SST.

SST
09082-00700
09082-00802  (09082-10801, 09082-20801)

i.

Connect 2 SST, and then connect them to the seat belt pretensioner.

NOTICE:

To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the pretensioner connector.



ii.

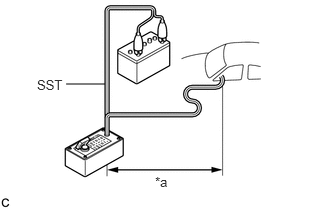

C154370C05
0.688,0.875 1.094,0.875 false 1.615,1.813 1.917,2.063 0.302,0.25 10 *a 0.385,0.802 0.844,1 0.458,0.198 10 SST
*a 10 m or more


Move SST at least 10 m (33 ft.) away from the front side window of the vehicle.


iii.

Close all the doors and windows of the vehicle.

NOTICE:

Do not damage the SST wire harness.




d.

Deploy the seat belt pretensioner.

i.

Confirm that no one is inside the vehicle or within a 10 m (33 ft.) radius of the vehicle.


ii.

Connect the red clip of SST to the 12 V battery positive (+) terminal and the black clip to the 12 V battery negative (-) terminal.


iii.

Press the SST deployment switch to deploy the seat belt pretensioner.

HINT:

The seat belt pretensioner will deploy at the same time as the LED of SST illuminates.




e.
B373164

Dispose of the seat belt.

i.

Remove the seat belt and SST.


ii.

Place the seat belt in a plastic bag, tie the end tightly, and dispose of it in the same way as other general parts.

CAUTION:
·

The seat belt becomes extremely hot when the pretensioner is deployed, so do not touch it for at least 30 minutes after the pretensioner is deployed.

·

Use gloves and safety glasses when handling a seat belt with a deployed pretensioner.

·

Always wash your hands with water after completing the operation.

·

Do not apply water, etc. to a seat belt with a deployed pretensioner.



HINT:

When scrapping a vehicle, deploy the seat belt pretensioner, and then scrap the vehicle with the seat belt installed.




Hide 73210 2.DISPOSE OF FRONT SEAT OUTER BELT ASSEMBLY (When not Installed in Vehicle)

CAUTION:
·

Use gloves and safety glasses when handling a seat belt with a deployed pretensioner.

·

Always wash your hands with water after completing the operation.

·

Do not apply water, etc. to a seat belt with a deployed pretensioner.

·

When deploying a seat belt pretensioner, always use the specified SST (SRS airbag deployment tool). Perform the operation in a place away from electrical interference.



NOTICE:
·

When disposing of a seat belt with a pretensioner, never deploy the pretensioner in the customer's vehicle.

·

Never dispose of a seat belt with a pretensioner that has not been deployed.

·

The seat belt produces an exploding sound when the pretensioner deploys, so perform the operation outdoors where it will not disturb local residents.

·

When deploying a seat belt pretensioner, perform the operation at least 10 m (33 ft.) away from the seat belt.

·

Be sure to follow the procedure listed below when deploying a seat belt pretensioner.



a.

Remove the front seat outer belt assembly.

Click hereVehicle Interior>SEAT BELT>FRONT SEAT OUTER BELT ASSEMBLY>REMOVAL


b.

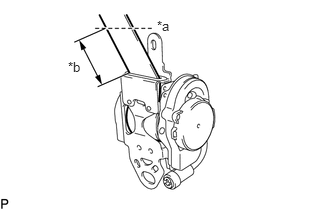

B373165C01
1.635,0.188 1.948,0.344 0.313,0.156 10 false *a 0.708,0.615 1.021,0.771 0.313,0.156 10 false *b
*a Cut
*b 100 mm


Wind the seat belt webbing with the retractor.


c.

When the seat belt webbing is sufficiently wound, cut the seat belt webbing approximately 100 mm (3.94 in.) from the retractor, as shown in the illustration.

HINT:

The retractor resistance increases in correlation with how much the seat belt webbing is wound.



d.

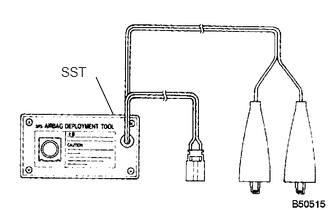

B050515N02
1,0.802 1.177,1.188 false 0.635,0.667 1.021,0.865 0.385,0.198 10 SST

Check the function of SST.

SST
09082-00700

CAUTION:

When deploying a seat belt pretensioner, always use the specified SST.


i.
B050511C33
0.865,1.135 1.177,1.5 false 2.563,0.833 2.281,0.833 false 0.5,1.021 0.885,1.219 0.385,0.198 10 false SST 2.615,0.729 2.885,0.979 0.271,0.25 10 false *a
*a 12 V Battery


Connect the red clip of SST to the 12 V battery positive (+) terminal and the black clip to the 12 V battery negative (-) terminal.

HINT:

At this time, do not connect the yellow connector. It will be connected to the seat belt pretensioner in a later step.



ii.

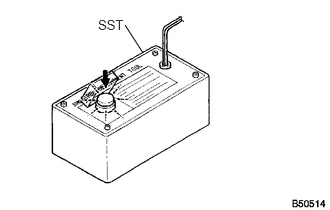

B050514E10
1.302,0.26 1.49,0.552 false 1.021,0.177 1.396,0.385 0.375,0.208 10 SST

Press the SST deployment switch and check that the LED of the SST deployment switch illuminates.

CAUTION:

If the LED is illuminated when the deployment switch is not pressed, SST may be malfunctioning. In this case, do not use the malfunctioning SST.




e.
B373163N01
2.49,1.667 2.635,1.844 false 0.958,1.552 1.156,1.667 false 2.552,1.854 3.01,2.052 0.458,0.198 10 false SST 0.667,1.479 1.125,1.677 0.458,0.198 10 false SST

Connect SST.

SST
09082-00700
09082-00802  (09082-10801, 09082-20801)

i.

Connect 2 SST, and then connect them to the seat belt pretensioner.

NOTICE:

To avoid damaging the SST connector and wire harness, do not lock the secondary lock of the pretensioner connector.



ii.

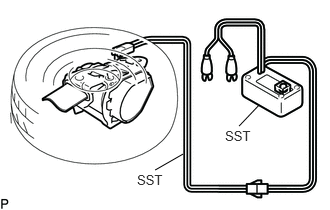

B373166N01
1.615,1.771 1.906,1.604 false 2.49,1.313 2.698,1.094 false 2.344,1.333 2.802,1.531 0.458,0.198 10 false SST 1.427,1.792 1.885,1.99 0.458,0.198 10 false SST

Place the seat belt on the ground and cover it with a tire and wheel assembly.

NOTICE:
·

Position the seat belt as shown in the illustration.

·

Use a scrap tire and wheel assembly when disposing of a seat belt pretensioner.




iii.

Position and hold SST at least 10 m (33 ft.) away from the tire and wheel assembly.

NOTICE:

Do not damage the SST wire harness.




f.

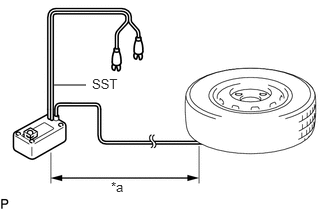

B317573C03
0.563,0.885 0.896,0.885 false 1.156,1.865 1.438,2.083 0.281,0.219 10 *a 0.958,0.792 1.427,1.073 0.469,0.281 10 SST
*a 10 m or more


Deploy the seat belt pretensioner.

i.

Check that no one is within a 10 m (33 ft.) radius of the tire and wheel assembly.


ii.

Connect the red clip of SST to the 12 V battery positive (+) terminal and the black clip to the 12 V battery negative (-) terminal.


iii.

Press the SST deployment switch to deploy the seat belt pretensioner.

HINT:

The seat belt pretensioner will deploy at the same time as the LED of SST illuminates.




g.
B373164

Dispose of the seat belt.

i.

Remove the tire and wheel assembly and SST.


ii.

Place the seat belt in a plastic bag, tie the end tightly, and dispose of it in the same way as other general parts.

CAUTION:
·

The seat belt becomes extremely hot when the pretensioner is deployed, so do not touch it for at least 30 minutes after the pretensioner is deployed.

·

Use gloves and safety glasses when handling a seat belt with a deployed pretensioner.

·

Always wash your hands with water after completing the operation.

·

Do not apply water, etc. to a seat belt with a deployed pretensioner.
