DOOR LOCK UNLOCK WARNING SWITCH REMOVAL
PROCEDURE
84140
1.REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY
84052
2.REMOVE UNLOCK WARNING SWITCH ASSEMBLY
a.
1.708,0.99 2.083,1.01
true
2.115,0.938 2.281,1.125
0.167,0.188
10
true
*a
| *a | Protective Tape |
Disconnect the connector.
b.

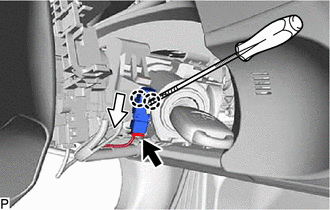

Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the unlock warning switch assembly from the steering column upper bracket as shown in the illustration.
