SEAT  REAR SEAT ASSEMBLY(for Fixed Seat Type)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 72693 1.INSTALL REAR SEAT CUSHION LOCK HOOK

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY(for Reclining Seat Type)>INSTALLATION

Hide 2.INSTALL REAR SEATBACK ASSEMBLY

a.

Place the rear seatback assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

Engage the 3 hooks.


c.
B184584
1.063,1.729 1.219,1.927 0.156,0.198 10 false 1 0.281,1.49 0.438,1.688 0.156,0.198 10 false 2 1.771,2.396 1.927,2.594 0.156,0.198 10 true 3

Install the rear seatback assembly with the 3 bolts in the order shown in the illustration.

Torque:
18 N*m (184 kgf*cm, 13 ft.*lbf)


Hide 71940A 3.INSTALL REAR SEAT HEADREST ASSEMBLY

Hide 71960B 4.INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

Hide 5.INSTALL REAR SEAT CUSHION ASSEMBLY

a.

Place the rear seat cushion assembly in the cabin.

NOTICE:

Be careful not to damage the vehicle body.



b.

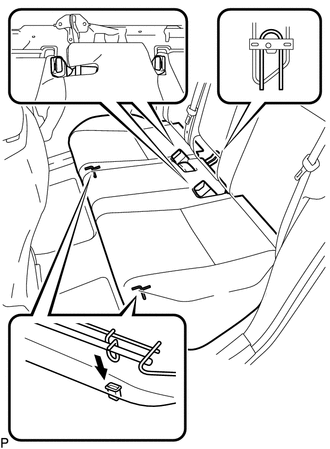

B376001
0.958,4.333 1.156,4.146 false 1.24,3.719 1.448,3.49 true 0.833,0.729 1.125,0.875 true 2.5,0.667 2.625,0.667 false 2.938,0.833 3.083,0.833 false 3.104,0.729 3.323,0.927 0.219,0.198 10 false *a 2.333,0.563 2.646,0.719 0.313,0.156 10 false *b 0.802,4.26 1.115,4.417 0.313,0.156 10 false *c 1.156,0.792 1.469,0.948 0.313,0.156 10 false *d 1.448,3.344 1.76,3.5 0.313,0.156 10 false *a
*a Rear Seat Cushion Frame Hook
*b Rear Seatback Frame Hook
*c Rear Seat Cushion Lock Hook
*d Rubber Band


Pass the rear seat inner with center belt assembly RH and rear seat inner with center belt assembly LH through the slits of the rear seat cushion assembly as shown in the illustration.


c.

Connect the rear seat inner with center belt assembly RH to the rubber band of the rear seat cushion assembly.


d.

Engage the rear seat cushion frame hook on the rear side of the rear seat cushion assembly to the rear seatback frame hook.


e.

Engage the 2 rear seat cushion frame hooks on the front side of the rear seat cushion assembly to the 2 rear seat cushion lock hooks as shown in the illustration.


f.

Confirm that the rear seat cushion assembly is securely installed.
