Engage the 2 claws to install the rear seat cushion lock hook as shown in the illustration.

NOTICE:

If the rear seat cushion lock hook is deformed or damaged, replace it with a new one.

HINT:

Use the same procedure for the RH side and LH side.

Engage the guide.

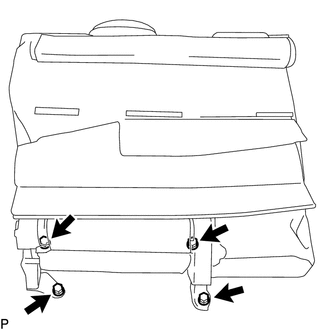

Temporarily install the rear seatback assembly RH with the 4 bolts.

2.844,0.417 3,0.615 0.156,0.198 10 true 1 0.427,0.531 0.583,0.729 0.156,0.198 10 false 2

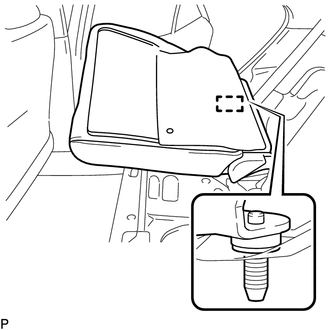

Tighten the 2 bolts in the order shown in the illustration.

Torque:

37 N*m (377 kgf*cm, 27 ft.*lbf)

2.813,0.531 2.969,0.729 0.156,0.198 10 true 1 0.396,0.76 0.552,0.958 0.156,0.198 10 true 2

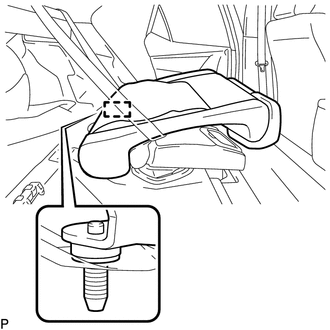

Tighten the 2 bolts in the order shown in the illustration.

Torque:

37 N*m (377 kgf*cm, 27 ft.*lbf)

Engage the guide.

Temporarily install the rear seatback assembly LH with the 4 bolts.

0.354,0.51 0.51,0.708 0.156,0.198 10 false 1 2.563,0.563 2.719,0.76 0.156,0.198 10 false 2

Tighten the 2 bolts in the order shown in the illustration.

Torque:

37 N*m (377 kgf*cm, 27 ft.*lbf)

0.104,0.74 0.26,0.938 0.156,0.198 10 false 1 3.063,0.896 3.219,1.094 0.156,0.198 10 true 2

Tighten the 2 bolts in the order shown in the illustration.

Torque:

37 N*m (377 kgf*cm, 27 ft.*lbf)

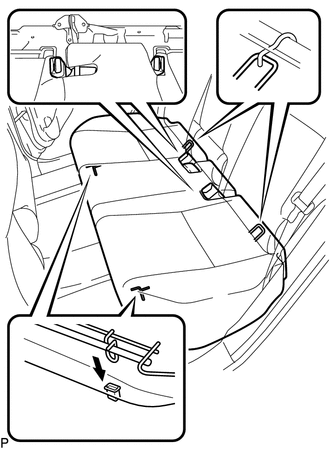

1.219,3.719 1.604,3.5 true 2.792,0.823 3.021,0.823 false 2.542,0.427 2.74,0.531 false 1.156,4.333 1.156,4.156 false 0.823,0.75 1.021,0.854 true 1.625,3.385 1.938,3.583 0.313,0.198 10 false *a 3.063,0.719 3.375,0.917 0.313,0.198 10 false *a 2.375,0.313 2.688,0.51 0.313,0.198 10 false *b 1.104,4.323 1.417,4.521 0.313,0.198 10 false *c 1.063,0.792 1.375,0.99 0.313,0.198 10 false *d

*a	Rear Seat Cushion Frame Hook
*b	Rear Seatback Hinge Hook
*c	Rear Seat Cushion Lock Hook
*d	Rubber Band

Pass the rear seat inner with center belt assembly RH and rear seat inner with center belt assembly LH through the slits of the rear seat cushion assembly as shown in the illustration.
