1.292,0.458 1.5,0.167 1.5,0.167 1.625,0.167 true 2.615,1.115 2.823,0.823 2.823,0.823 2.948,0.823 true 1.677,0.094 1.99,0.25 0.313,0.156 10 false *1 3,0.76 3.25,0.979 0.25,0.219 10 false *2

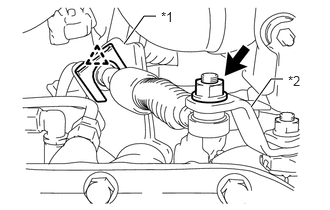

*1	No. 1 Transmission Control Cable Bracket
*2	Control Shaft Lever

Remove the clip and nut, and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket and control shaft lever.

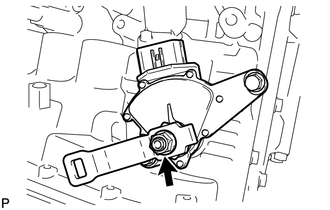

Remove the nut, washer and control shaft lever from the manual valve lever shaft.

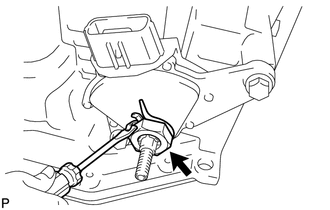

Pry out the lock plate and remove the lock nut and lock plate from the park/neutral position switch assembly.

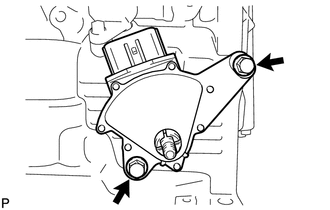

Remove the 2 bolts and park/neutral position switch assembly from the transaxle case.
