U340E AUTOMATIC TRANSMISSION / TRANSAXLE  TRANSMISSION WIRE  INSTALLATION


PROCEDURE

Hide 82125J 1.INSTALL TRANSMISSION WIRE

a.

Coat a new O-ring with ATF and install it to the transmission wire.

NOTICE:

Be careful not to damage the O-ring.



b.

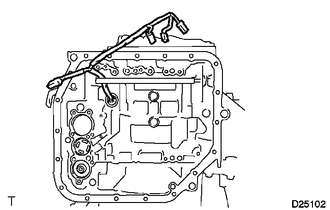

D025102

Insert the transmission wire into the transaxle case.


c.

Install the transmission wire to the transaxle case with the bolt.

Torque:
5.4 N*m (55 kgf*cm, 48 in.*lbf)


Hide 35410 2.INSTALL TRANSMISSION VALVE BODY ASSEMBLY

Click hereDrivetrain>U340E AUTOMATIC TRANSMISSION / TRANSAXLE>VALVE BODY ASSEMBLY>INSTALLATION
