EXTERIOR PANELS / TRIM REAR DOOR WINDOW FRAME MOULDING REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH side and LH side.
·The following procedure is for the LH side.
PROCEDURE
75740
1.REMOVE REAR DOOR BELT MOULDING ASSEMBLY
75762A
2.REMOVE REAR DOOR FRONT WINDOW FRAME MOULDING
- HINT:
-
When removing the rear door front window frame moulding, heat the vehicle body and rear door front window frame moulding using a heat light.
| Item | Temperature |
|---|---|
| Vehicle Body | 40 to 60°C (104 to 140°F) |
| Rear Door Front Window Frame Moulding | 20 to 30°C (68 to 86°F) |
- NOTICE:
-
Do not heat the vehicle body or rear door front window frame moulding excessively.
a.
Using a heat light, heat the rear door front window frame moulding.
b.
2.5,0.729 3,0.729
false
|
Double-sided Tape |

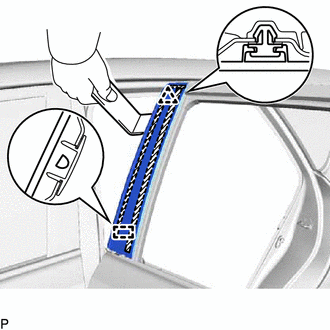

Using a moulding remover, disengage the clip and guide, and separate the double-sided tape to remove the rear door front window frame moulding.
