2NZ-FE EMISSION CONTROL  PCV VALVE  REMOVAL


PROCEDURE

Hide 11212 1.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2NZ-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 12204 2.REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

a.

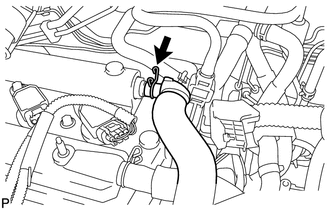

A181225

Slide the clip and disconnect the ventilation hose from the PCV valve (ventilation valve sub-assembly).


b.

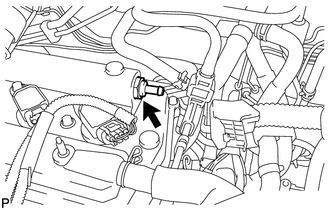

A183411

Using a deep socket wrench (19 mm), remove the PCV valve (ventilation valve sub-assembly) from the cylinder head cover sub-assembly.
