2ZR-FE EMISSION CONTROL  PCV VALVE  INSTALLATION


PROCEDURE

Hide 12204 1.INSTALL PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

a.

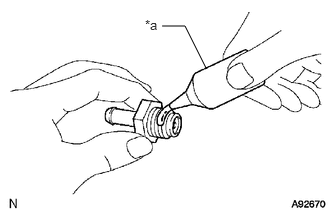

A092670C06
2.146,0.708 1.927,0.271 1.927,0.271 1.688,0.271 false 1.51,0.177 2.115,0.354 0.604,0.177 10 *a
*a Adhesive


Apply adhesive to 2 or 3 threads of the PCV valve (ventilation valve sub-assembly).

Adhesive:

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent



b.

Using a 22 mm ball joint lock nut wrench, install the PCV valve (ventilation valve sub-assembly) to the ventilation case.

Torque:
20 N*m (204 kgf*cm, 15 ft.*lbf)

NOTICE:
·

Use the torque value compensation formula to calculate the torque value for use when a torque wrench is combined with a tool such as a ball joint lock nut wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

Do not start the engine for at least 1 hour after installation.




Hide 12261 2.CONNECT VENTILATION HOSE

a.

Connect the ventilation hose to the PCV valve (ventilation valve sub-assembly) and slide the clip to secure it.
