CLUTCH  CLUTCH UNIT(for C50)  REMOVAL


PROCEDURE

Hide 31204 2.REMOVE CLUTCH RELEASE FORK SUB-ASSEMBLY

a.

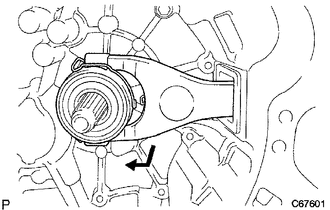

C067601

Remove the clutch release fork sub-assembly with the clutch release bearing assembly from the manual transaxle assembly.


Hide 31230 3.REMOVE CLUTCH RELEASE BEARING ASSEMBLY

a.

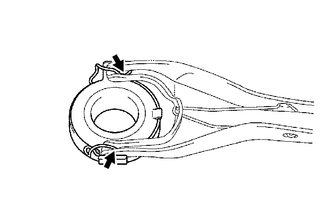

C296281

Remove the clutch release bearing assembly from the clutch release fork sub-assembly.


Hide 31232A 4.REMOVE RELEASE BEARING HUB CLIP

a.

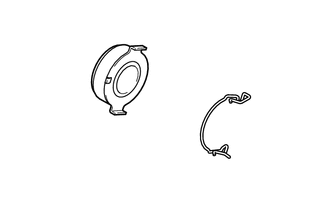

C296285
1.698,1.854 1.833,1.854 1.833,1.854 2.104,1.51 false 0.594,1.354 0.729,1.354 0.729,1.354 1,1.01 false 1.5,1.781 1.927,2.021 0.427,0.24 10 false *1 0.417,1.271 0.802,1.521 0.385,0.25 10 false *2
*1 Release Bearing Hub Clip
*2 Clutch Release Bearing Assembly


Remove the release bearing hub clip from the clutch release bearing assembly.


Hide 31126 5.REMOVE CLUTCH RELEASE FORK BOOT

a.

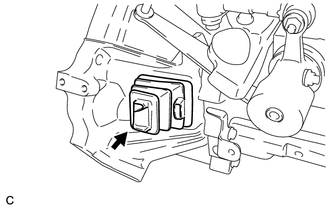

C296282

Remove the clutch release fork boot from the manual transaxle assembly.


Hide 31236B 6.REMOVE RELEASE FORK SUPPORT

a.

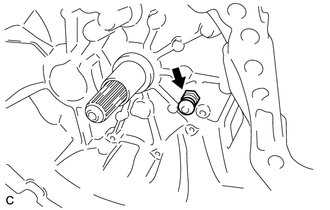

C155093

Remove the release fork support from the manual transaxle assembly.


Hide 31210 7.REMOVE CLUTCH COVER ASSEMBLY

a.

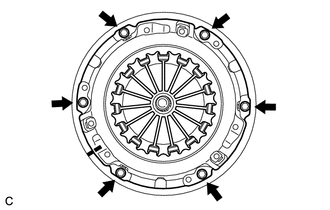

C303398
0.938,1.604 0.635,1.531 0.635,1.531 0.99,1.531 false 0.438,1.448 0.75,1.646 0.313,0.198 10 false *a
*a Matchmark


Put matchmarks on the clutch cover assembly and flywheel sub-assembly.


b.

Loosen each bolt 360° at a time until the spring tension is released.


c.

Remove the 6 bolts and clutch cover assembly.

NOTICE:

Do not drop the clutch disc assembly.



Hide 31250 8.REMOVE CLUTCH DISC ASSEMBLY

a.

Remove the clutch disc assembly.

NOTICE:

Keep the lined part of the clutch disc assembly, the pressure plate, and the surface of the flywheel sub-assembly away from oil and foreign matter.
