CLUTCH  CLUTCH MASTER CYLINDER  REMOVAL


PROCEDURE

Hide 55606 1.REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>LOWER INSTRUMENT PANEL>REMOVAL

Hide 31434 2.DISCONNECT CLUTCH RESERVOIR TUBE

a.

Loosen the clip and disconnect the clutch reservoir tube from the clutch master cylinder assembly.

HINT:

Use a container to collect the fluid.



Hide 3.DISCONNECT CLUTCH LINE

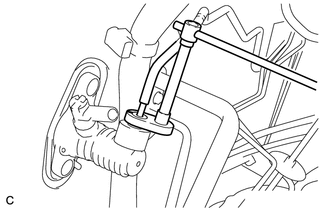

C296462

a.

Using a 10 mm union nut wrench, disconnect the clutch line.

HINT:

Use a container to collect the fluid.



Hide 31410 4.REMOVE CLUTCH MASTER CYLINDER ASSEMBLY

a.
C298679

Remove the clip from the clutch master cylinder push rod clevis with hole pin.


b.

Remove the clutch master cylinder push rod clevis with hole pin and disconnect the clutch master cylinder push rod clevis from the clutch pedal sub-assembly.


c.

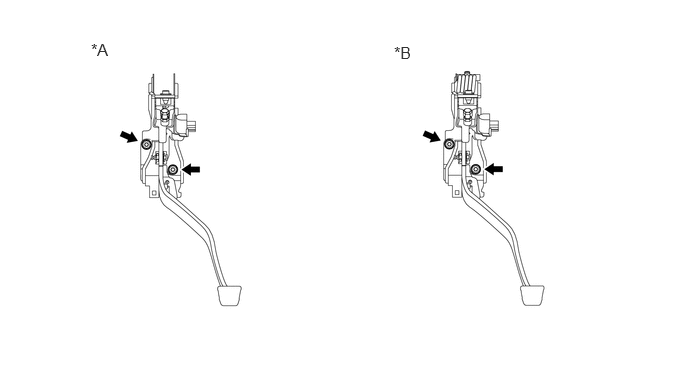

Remove the 2 nuts and clutch master cylinder assembly from the vehicle body.

C304228C01
0.948,0.417 1.323,0.656 0.375,0.24 12 false *A 4.104,0.448 4.479,0.688 0.375,0.24 12 false *B
*A for 2NZ-FE *B for 2ZR-FE



d.

Remove the clutch master cylinder bracket.
