INTERIOR PANELS / TRIM  UPPER INSTRUMENT PANEL  INSTALLATION


PROCEDURE

Hide 1.INSTALL UPPER INSTRUMENT PANEL ASSEMBLY

a.

When installing a new instrument panel sub-assembly:

i.

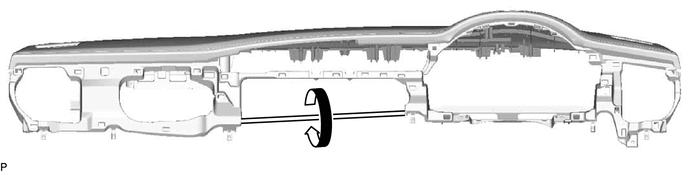

Immediately before installing the upper instrument panel assembly, twist and cut off the portion as shown in the illustration.

B358272



b.

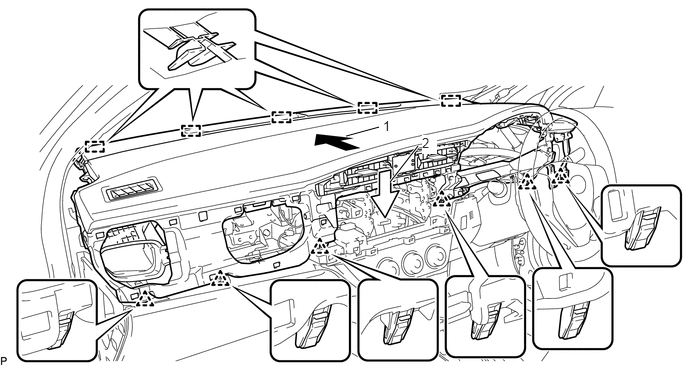

Push the upper instrument panel assembly in the direction indicated by the arrow (1) as shown in the illustration to engage the 5 guides.

B373307N01
3.604,1.417 3.948,1.323 false 4.063,1.896 4.354,1.521 true 3.99,1.229 4.146,1.427 0.156,0.198 10 false 1 4.396,1.406 4.552,1.604 0.156,0.198 10 true 2


c.

Push the upper instrument panel assembly in the direction indicated by the arrow (2) as shown in the illustration to engage the 6 clips and install the upper instrument panel assembly.


d.

Install the 2 clips.


e.

Connect the connector.


Hide 62211U 2.INSTALL FRONT PILLAR GARNISH ASSEMBLY RH

Hide 62212B 3.INSTALL FRONT PILLAR GARNISH ASSEMBLY LH

HINT:

Use the same procedure as for the RH side.


Hide 55318C 4.INSTALL INSTRUMENT SIDE PANEL LH

a.

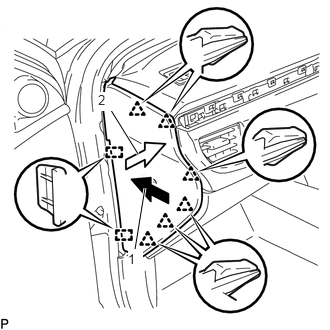

B358273N01
1.406,2.594 1.51,1.958 true 1.438,1.604 1.135,1.115 true 1.333,2.615 1.49,2.813 0.156,0.198 10 true 1 1.021,0.958 1.177,1.156 0.156,0.198 10 true 2

Push the instrument side panel LH in the direction indicated by the arrow (1) as shown in the illustration to engage the 2 guides and push it in the direction indicated by the arrow (2) as shown in the illustration to engage the 6 clips to install the instrument side panel LH.


Hide 62312B 5.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

Hide 6.INSTALL NO. 2 INSTRUMENT PANEL REGISTER SUB-ASSEMBLY

a.

Engage the 8 clips to install the No. 2 instrument panel register sub-assembly.


Hide 83100 7.INSTALL COMBINATION METER ASSEMBLY

Hide 55410C 8.INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

a.

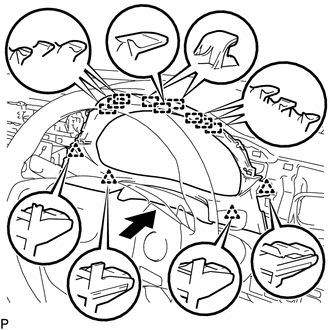

B358252

Engage the 9 guides and 4 clips to install the instrument cluster finish panel assembly as shown in the illustration.


Hide 55405B 9.INSTALL CENTER INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY

a.

Connect the connector.


b.

Engage the 9 clips to install the center instrument cluster finish panel sub-assembly.


Hide 55011A 10.INSTALL NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

a.

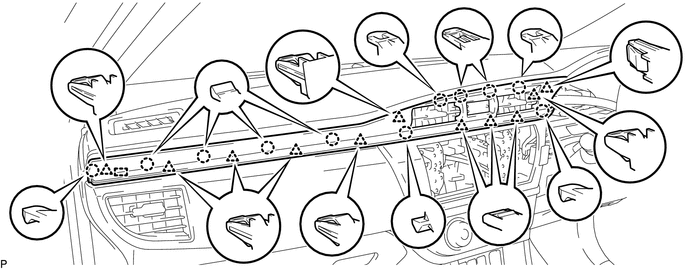

Engage the guide, 11 claws and 11 clips to install the No. 1 instrument panel garnish sub-assembly.

B373308


Hide 55650 11.INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY

a.

Engage the 2 claws and 4 clips to install the No. 1 instrument panel register assembly.


Hide 55317A 12.INSTALL INSTRUMENT SIDE PANEL RH

a.
B358275N01
1.396,1.302 1.875,1.625 true 1.844,1.958 1.99,2.49 true 1.24,1.125 1.396,1.323 0.156,0.198 10 true 1 2,2.51 2.156,2.708 0.156,0.198 10 true 2

Push the instrument side panel RH in the direction indicated by the arrow (1) as shown in the illustration to engage the 2 guides and push it in the direction indicated by the arrow (2) as shown in the illustration to engage the 6 clips to install the instrument side panel RH.


Hide 62311B 13.INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH

Hide 55012A 14.INSTALL NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

a.

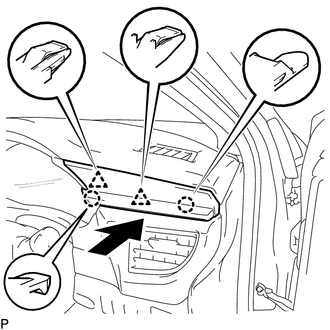

B373508

Engage the 2 claws and 2 clips to install the No. 2 instrument panel garnish sub-assembly as shown in the illustration.


Hide 15.CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION
