WINDOW / GLASS  POWER WINDOW MASTER SWITCH  REMOVAL


PROCEDURE

Hide 74210 1.REMOVE FRONT ARMREST ASSEMBLY RH

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY

Hide 2.REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY

Hide 84820 3.REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

a.

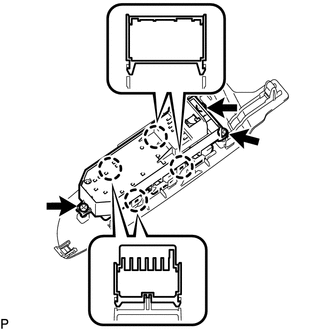

B358871

Remove the 3 screws.


b.

Disengage the 4 claws and remove the power window regulator master switch assembly.
