FRONT SUSPENSION FRONT STABILIZER BAR REMOVAL

PROCEDURE

Hide Display 51201 1.REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

Click hereSuspension>FRONT SUSPENSION>FRONT SUSPENSION MEMBER>REMOVAL

Hide Display 48810 2.REMOVE FRONT STABILIZER LINK ASSEMBLY LH

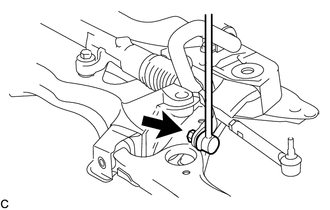

Remove the nut and front stabilizer link assembly LH from the front stabilizer bar.

HINT:: If the ball joint turns together with the nut, use a 6 mm hexagon wrench to hold the stud bolt.

Hide Display 48820B 3.REMOVE FRONT STABILIZER LINK ASSEMBLY RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48811 4.REMOVE FRONT STABILIZER BAR

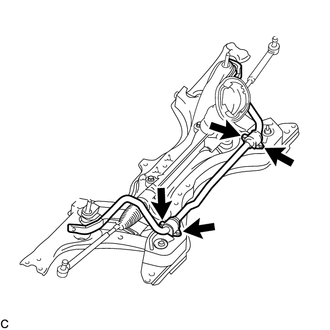

Remove the 4 bolts, front stabilizer bar with 2 front No. 1 stabilizer brackets and 2 front stabilizer bar bushings from the front suspension crossmember sub-assembly.

Hide Display 48829A 5.REMOVE FRONT NO. 1 STABILIZER BRACKET LH

Remove the front No. 1 stabilizer bracket LH from the front stabilizer bar bushing LH.

Hide Display 48824A 6.REMOVE FRONT NO. 1 STABILIZER BRACKET RH

HINT:: Perform the same procedure as for the LH side.

Hide Display 48815E 7.REMOVE FRONT STABILIZER BAR BUSHING LH

Remove the front stabilizer bar bushing LH from the front stabilizer bar.

Hide Display 48815D 8.REMOVE FRONT STABILIZER BAR BUSHING RH

HINT:: Perform the same procedure as for the LH side.
