FRONT SUSPENSION FRONT LOWER SUSPENSION ARM(for Automatic Transaxle and CVT) INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

Hide Display 48069 1.TEMPORARILY INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

Temporarily install the front lower No. 1 suspension arm sub-assembly to the front suspension crossmember sub-assembly with the 2 bolts and nut.

NOTICE:: Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

Hide Display 51201 2.INSTALL FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY

Hide Display 3.INSTALL FRONT WHEEL

Hide Display 4.STABILIZE SUSPENSION

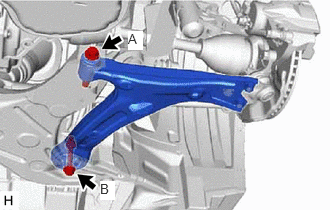

Hide Display 48069 5.FULLY TIGHTEN FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

1.333,0.323 1.49,0.521 0.156,0.198 10 true A 1.042,1.885 1.198,2.083 0.156,0.198 10 true B

Fully tighten the 2 bolts.

Torque:: Bolt (A) : 137 N*m (1397 kgf*cm, 101 ft.*lbf); Bolt (B) : 129 N*m (1315 kgf*cm, 95 ft.*lbf)

NOTICE:: Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

Hide Display 6.INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
