PARKING BRAKE PARKING BRAKE SWITCH REMOVAL

PROCEDURE

Hide Display 58910C 1.REMOVE REAR CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL

Hide Display 84550 2.REMOVE PARKING BRAKE SWITCH ASSEMBLY

a.

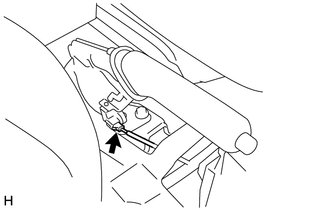

C291469C01

0,0 0,0 false

Disconnect the parking brake switch assembly connector.

b.

C291471

Remove the screw and parking brake switch assembly.
