THEFT DETERRENT / KEYLESS ENTRY SMART ENTRY AND START SYSTEM(for Entry Function) Driver Side Door Entry Lock Function does not Operate

DESCRIPTION

If the entry lock function does not operate for the driver door only, but the entry unlock function operates, the request code is being transmitted properly from the driver door. In this case, there may be a problem related to the front door outside handle assembly (for driver door) (lock sensor) (connection between the certification ECU (smart key ECU assembly) and front door outside handle assembly (for driver door) (lock sensor)).

WIRING DIAGRAM

0.396,3.667 2.052,4.083 1.656,0.417 10 false Front Door Outside Handle Assembly (for Driver Door) 0.396,3.49 1.281,3.719 0.885,0.229 10 false G14 5.417,3.521 6.969,4.031 1.552,0.51 10 false Certification ECU (Smart Key ECU Assembly) 1.313,0.729 1.854,0.938 0.542,0.208 10 false ANT1 1.302,1.198 1.844,1.406 0.542,0.208 10 false ANT2 1.552,1.667 2.094,1.875 0.542,0.208 10 false B 1.271,2.125 1.813,2.333 0.542,0.208 10 false SENS 1.302,2.583 1.844,2.792 0.542,0.208 10 false TRG+ 1.375,3.031 1.917,3.24 0.542,0.208 10 false GND 1.781,0.604 2.323,0.813 0.542,0.208 10 false 6 1.792,1.063 2.333,1.271 0.542,0.208 10 false 3 1.792,1.521 2.333,1.729 0.542,0.208 10 false 5 1.792,1.99 2.333,2.198 0.542,0.208 10 false 4 1.781,2.438 2.323,2.646 0.542,0.208 10 false 1 1.792,2.906 2.333,3.115 0.542,0.208 10 false 2 5.427,0.542 5.969,0.75 0.542,0.208 10 false 12 5.354,0.719 5.833,0.938 0.479,0.219 10 false E110 5.344,3.021 5.771,3.271 0.427,0.25 10 false E108 5.438,1 5.979,1.208 0.542,0.208 10 false 13 5.427,1.458 5.969,1.667 0.542,0.208 10 false 19 5.427,1.917 5.969,2.125 0.542,0.208 10 false 22 5.427,2.375 5.969,2.583 0.542,0.208 10 false 20 5.438,2.833 5.979,3.042 0.542,0.208 10 false 11 5.74,0.74 6.281,0.948 0.542,0.208 10 false CLG1 5.74,1.188 6.281,1.396 0.542,0.208 10 false CG1B 5.74,1.656 6.281,1.865 0.542,0.208 10 false POS1 5.74,2.115 6.281,2.323 0.542,0.208 10 false SEN1 5.74,2.583 6.281,2.792 0.542,0.208 10 false TSW1 5.75,3.031 6.292,3.24 0.542,0.208 10 false E 5.344,1.188 5.781,1.396 0.438,0.208 10 false E110 5.344,1.635 5.781,1.844 0.438,0.208 10 false E110 5.354,2.104 5.792,2.313 0.438,0.208 10 false E110 5.344,2.552 5.781,2.76 0.438,0.208 10 false E110

CAUTION / NOTICE / HINT

NOTICE:: ·

The smart entry and start system (for Entry Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM(for Entry Function)>HOW TO PROCEED WITH TROUBLESHOOTING

·

When using the GTS with the engine switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

Check that there are no electrical key transmitter sub-assemblies in the vehicle.

·

Before performing the inspection, check that DTC B1242 (wireless door lock control) is not output.

Click hereVehicle Interior>DOOR LOCK>WIRELESS DOOR LOCK CONTROL SYSTEM(w/ Smart Entry and Start System)>DTC CHECK / CLEAR

·

Before replacing the certification ECU (smart key ECU assembly), refer to smart entry and start system (for Entry Function) Precaution.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM(for Entry Function)>OPERATION CHECK

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".

PROCEDURE

1.CHECK POWER DOOR LOCK CONTROL SYSTEM

When the door control switch on the power window regulator switch assembly is operated, check that the doors unlock and lock according to the switch operation.

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>OPERATION CHECK

OK:: Door locks operate normally.

Result:

Proceed to
OK
NG

2.READ VALUE USING GTS (D-DOOR TRIGGER SWITCH)

GO TO POWER DOOR LOCK CONTROL SYSTEM

Click hereVehicle Interior>DOOR LOCK>POWER DOOR LOCK CONTROL SYSTEM>HOW TO PROCEED WITH TROUBLESHOOTING

2.READ VALUE USING GTS (D-DOOR TRIGGER SWITCH)

Connect the GTS to the DLC3.

Turn the engine switch on (IG).

Turn the GTS on.

Enter the following menus: Body Electrical / Entry&Start / Data List.

Read the Data List according to the display on the GTS.

Body Electrical > Entry&Start > Data List

Tester Display	Measurement Item	Range	Normal Condition	Diagnostic Note
D-Door Trigger Switch	Driver door touch sensor (lock sensor)	OFF or ON	OFF: Driver door touch sensor (lock sensor) not touched ON: Driver door touch sensor (lock sensor) touched	· Displays whether the lock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily). · Use this Data List item to help determine if there is a lock sensor malfunction when the entry lock function does not operate.

Body Electrical > Entry&Start > Data List

Tester Display
D-Door Trigger Switch

50003 125 12

OK:: The GTS display changes correctly in response to the operation of the front door outside handle assembly (for driver door).

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

3.CHECK HARNESS AND CONNECTOR (FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR DRIVER DOOR) - CERTIFICATION ECU (SMART KEY ECU ASSEMBLY))

Disconnect the G14 front door outside handle assembly (for driver door) connector.

Disconnect the E110 and E108 certification ECU (smart key ECU assembly) connectors.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
G14-1 (TRG+) - E110-20 (TSW1)	Always	Below 1 Ω
E108-11 (E) - Body ground	Always	Below 1 Ω
G14-1 (TRG+) or E110-20 (TSW1) - Body ground	Always	10 kΩ or higher

Result:

Proceed to
OK
NG

4.CHECK FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR DRIVER DOOR) (DRIVER DOOR LOCK SENSOR SIGNAL INPUT)

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CHECK FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR DRIVER DOOR) (DRIVER DOOR LOCK SENSOR SIGNAL INPUT)

Connect the G14 front door outside handle assembly (for driver door) connector.

Connect the E110 and E108 certification ECU (smart key ECU assembly) connectors.

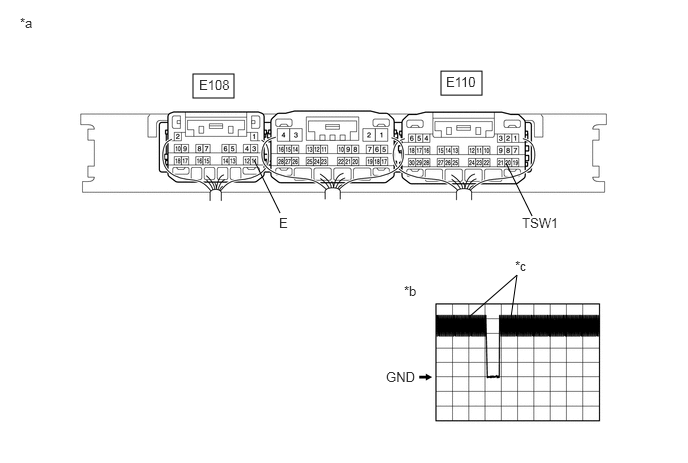

Using an oscilloscope, check the waveform.

2.01,0.771 2.438,1.021 0.427,0.25 4.594,0.74 5.021,0.99 0.427,0.25 2.917,2.219 2.646,1.667 false 5.542,2.25 5.271,1.698 false 5.323,3.302 5.385,2.865 5.385,2.865 4.896,3.292 false 0.208,0.156 0.521,0.354 0.313,0.198 10 false *a 2.073,0.802 2.542,1.073 0.469,0.271 10 false E108 4.646,0.771 5.219,1.094 0.573,0.323 10 false E110 5.438,2.24 6.042,2.469 0.604,0.229 10 false TSW1 2.906,2.24 3.219,2.438 0.313,0.198 10 false E 5.365,2.688 5.677,2.885 0.313,0.198 10 false *c 4.208,2.948 4.521,3.146 0.313,0.198 10 false *b 4.021,3.844 4.552,4.167 0.531,0.323 10 false GND

*a	Component with harness connected (Certification ECU (Smart Key ECU Assembly))	*b	Waveform
*c	In actuality, sampling is being performed	-	-

OK:

Tester Connection	Condition	Tool Setting	Specified Condition
E110-20 (TSW1) - E108-11 (E)	Procedure: 1. Engine switch off 2. Electrical key transmitter sub-assembly brought outside vehicle 3. All doors closed 4. Driver door lock sensor not touched → touched	2 V/DIV., 500 ms/DIV.	Pulse generation (See waveform)

Result:

Proceed to
OK
NG

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR DRIVER DOOR)

Click hereVehicle Exterior>DOOR / HATCH>FRONT DOOR>DISASSEMBLY
