EXTERIOR PANELS / TRIM  RADIATOR GRILLE  INSTALLATION


PROCEDURE

Hide 53114B 1.INSTALL UPPER RADIATOR GRILLE

a.

Engage the 8 claws.


b.

Install the upper radiator grille with the 2 screws.


Hide 53124E 2.INSTALL UPPER RADIATOR GRILLE MOULDING LH

a.

Engage the 4 guides and 3 claws to install the upper radiator grille moulding LH.


Hide 53121F 3.INSTALL UPPER RADIATOR GRILLE MOULDING RH

HINT:

Use the same procedure as for the LH side.


Hide 75311 4.INSTALL RADIATOR GRILLE (OR FRONT PANEL) EMBLEM

a.

Engage the 3 claws to install the radiator grille (or front panel) emblem.


Hide 53395H 5.INSTALL HOOD TO RADIATOR GRILLE SEAL

a.

Engage the 9 clips to install the hood to radiator grille seal.


Hide 53101 6.INSTALL RADIATOR GRILLE SUB-ASSEMBLY

a.

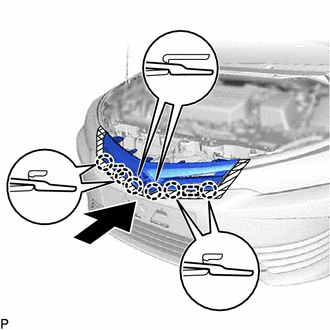

B457145

Engage the 2 guides and 6 claws to install the radiator grille sub-assembly as shown in the illustration.


b.

Install the bolt and 2 clips.


Hide 53141 7.INSTALL RADIATOR COVER

a.

Install the radiator cover with the 4 clips.
