52131A 1.INSTALL FRONT BUMPER REINFORCEMENT

a.

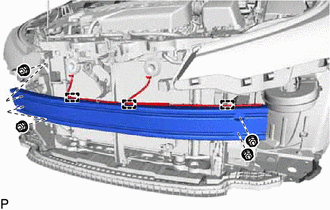

Install the front bumper reinforcement with the 4 nuts.

Torque:

36 N*m (367 kgf*cm, 27 ft.*lbf)

b.

Engage the 3 clamps.

52611 2.INSTALL FRONT BUMPER ENERGY ABSORBER

a.

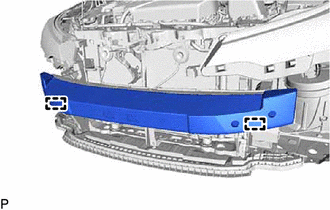

Engage the 2 guides to install the front bumper energy absorber.

52116A 3.INSTALL FRONT BUMPER SIDE SUPPORT LH

a.

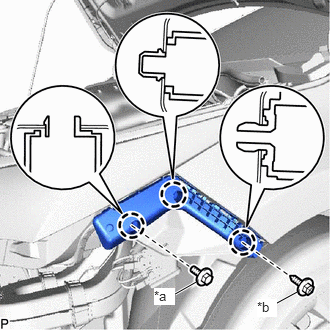

1.823,3.063 2.042,2.938 true 2.865,3.167 3.094,3.042 true 1.604,3 1.823,3.177 0.219,0.177 10 true *a 2.677,3.115 2.885,3.302 0.208,0.188 10 true *b

*a	Bolt
*b	Screw

Engage the 3 claws.

b.

Install the front bumper side support LH with the bolt and screw.

Torque:

Bolt : 5.4 N*m (55 kgf*cm, 48 in.*lbf)

52115A 4.INSTALL FRONT BUMPER SIDE SUPPORT RH

81482C 5.INSTALL FOG LIGHT COVER LH

a.

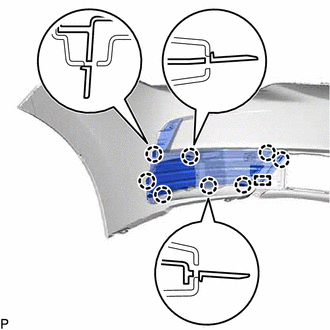

Engage the guide and 8 claws.

b.

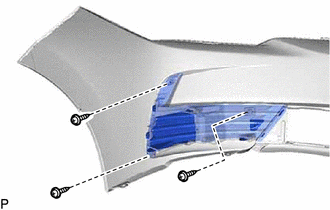

Install the fog light cover LH with the 3 screws.

81481E 6.INSTALL FOG LIGHT COVER RH

81220 7.INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)

81210A 8.INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

53112E 9.INSTALL LOWER NO. 1 RADIATOR GRILLE

a.

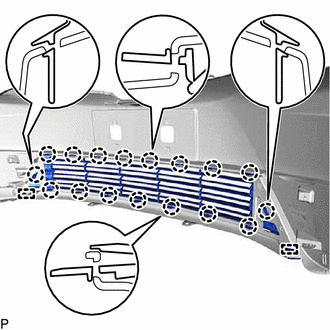

Engage the 2 guides and 17 claws.

b.

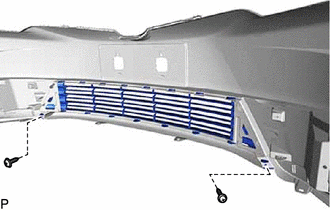

Install the lower No. 1 radiator grille with the 2 screws.

53879H 10.INSTALL FRONT FENDER LINER RETAINER

a.

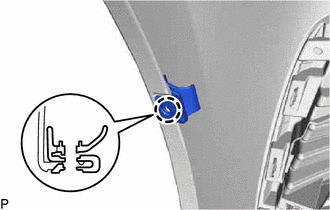

Engage the claw to install the front fender liner retainer.

HINT:

Use the same procedure for the RH side and LH side.
