LIGHTING (INT)  VANITY LIGHT  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 81340 1.REMOVE VANITY LIGHT ASSEMBLY

a.
E352910

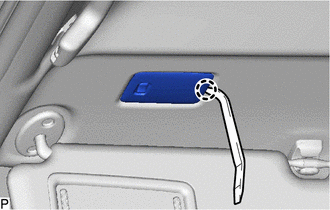

Using a moulding remover, disengage the claw.


b.

Disconnect the connector to remove the vanity light assembly.


Hide 81340B 2.REMOVE VANITY LIGHT BULB

a.
E352911

Disengage the claw as shown in the illustration.


b.
E352912N01
1.021,0.573 1.177,0.771 0.156,0.198 10 false 1 2.698,1.594 2.854,1.792 0.156,0.198 10 false 1 2.281,0.167 2.438,0.365 0.156,0.198 10 false 2

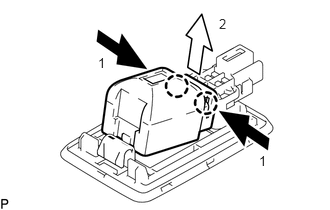

Disengage the 2 claws and remove the shade from the vanity light lens as indicated by the arrows, in the order shown in the illustration.


c.
E352913

Remove the vanity light bulb from the vanity light lens as shown in the illustration.
