1ZR-FE BATTERY / CHARGING  GENERATOR  REASSEMBLY


PROCEDURE

Hide 27310B 1.INSTALL GENERATOR DRIVE END FRAME BEARING

a.

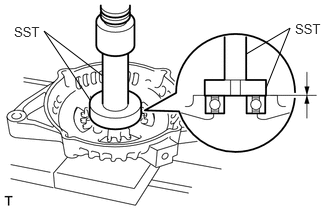

A237642N06
1.073,0.792 0.458,0.323 0.458,0.323 0.938,1.042 false 2.563,0.563 3.021,0.292 3.021,0.292 2.771,0.917 false 0.146,0.25 0.469,0.51 0.323,0.26 10 false SST 3.073,0.219 3.396,0.479 0.323,0.26 10 false SST

Using SST and a press, install a new generator drive end frame bearing.

SST
09950-60010  (09951-00470)
09950-70010  (09951-07100)


b.

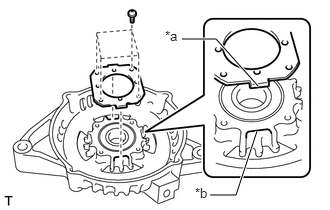

A347477C01
1.896,0.406 2.25,0.406 2.25,0.406 2.688,0.896 true 2.188,2.031 2.458,2.031 2.458,2.031 2.677,1.365 true 1.719,0.292 2.031,0.448 0.313,0.156 10 false *a 2.031,1.927 2.344,2.083 0.313,0.156 10 false *b
*a Tab
*b Cutout


Fit the tabs of the retainer plate into the cutouts of the generator drive end frame to install the retainer plate.


c.

Install the 4 screws.

Torque:
2.3 N*m (23 kgf*cm, 20 in.*lbf)


Hide 27330 2.INSTALL GENERATOR ROTOR ASSEMBLY

a.

Place the generator drive end frame on the generator pulley with clutch.


b.
A383004C02

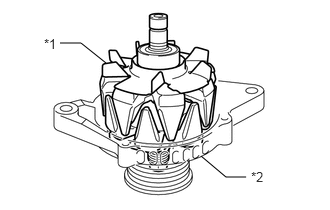

0.625,0.448 0.844,0.448 0.844,0.448 1.104,0.656 false 2.094,1.625 2.354,1.844 2.354,1.844 2.563,1.844 false 0.458,0.375 0.771,0.531 0.313,0.156 10 false *1 2.615,1.76 2.927,1.917 0.313,0.156 10 false *2
*1 Generator Rotor Assembly
*2 Generator Drive End Frame


Install the generator rotor assembly to the generator drive end frame.


Hide 27360 3.INSTALL GENERATOR COIL ASSEMBLY

a.

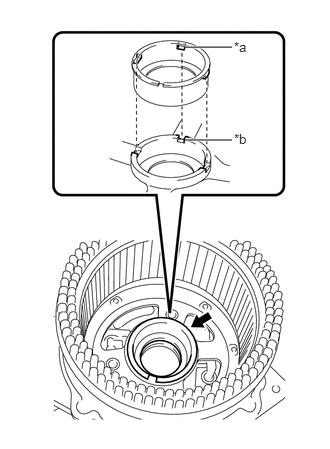

A401901C01
1.927,0.49 2.417,0.49 true 1.927,1.458 2.417,1.458 true 2.438,0.406 2.75,0.563 0.313,0.156 10 false *a 2.438,1.365 2.75,1.521 0.313,0.156 10 false *b
*a Protrusion
*b Groove


Install a new bearing cover packing.

NOTICE:

Align the protrusions of the bearing cover packing with the grooves of the generator coil assembly when installing.



b.

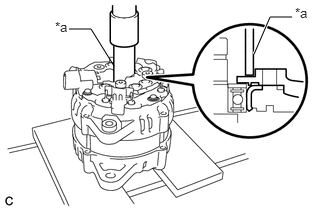

A285303C06
2.646,0.563 2.813,0.177 2.813,0.177 3.042,0.177 true 1.188,0.688 0.948,0.302 0.948,0.302 0.719,0.302 false 0.573,0.198 0.885,0.354 0.313,0.156 10 false *a 3.073,0.052 3.385,0.208 0.313,0.156 10 false *a
*a 21 mm Deep Socket Wrench


Using a 21 mm deep socket wrench and press, slowly press in the generator coil assembly.


c.

Install the 4 bolts.

Torque:
5.9 N*m (60 kgf*cm, 52 in.*lbf)


Hide 27370A 4.INSTALL GENERATOR BRUSH HOLDER ASSEMBLY

a.

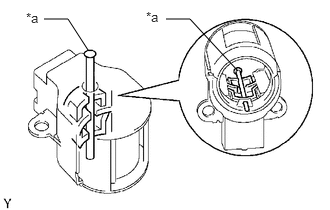

A153827C22
2.479,0.74 1.979,0.198 1.979,0.198 1.729,0.198 false 0.917,0.521 0.708,0.198 0.708,0.198 0.458,0.198 false 1.521,0.094 1.833,0.313 0.313,0.219 10 false *a 0.271,0.104 0.583,0.323 0.313,0.219 10 false *a
*a Pin (1.0 mm)


While pushing the 2 brushes into the generator brush holder assembly, insert a 1.0 mm (0.0394 in.) pin into the generator brush holder assembly hole.


b.

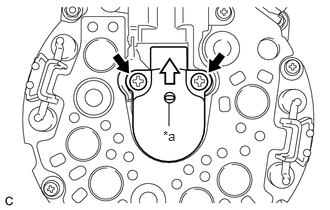

A334792C01
1.76,1.073 1.76,1.313 false 1.698,1.333 1.896,1.573 0.198,0.24 10 false *a
*a Pin (1.0 mm)
V100136

Pull out


Install the generator brush holder assembly to the generator coil assembly with the 2 screws.

Torque:
1.8 N*m (18 kgf*cm, 16 in.*lbf)


c.

Pull out the pin from the generator brush holder assembly hole.


Hide 27387B 5.INSTALL GENERATOR TERMINAL INSULATOR

a.

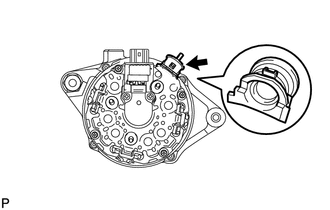

A264636

Install the generator terminal insulator to the generator coil assembly.

NOTICE:

Be sure to install the generator terminal insulator in the correct orientation.



Hide 27039 6.INSTALL GENERATOR REAR END COVER

A330875

a.

Install the generator rear end cover to the generator coil assembly with the 3 bolts.

Torque:
4.6 N*m (47 kgf*cm, 41 in.*lbf)


Hide 27415 7.INSTALL GENERATOR PULLEY WITH CLUTCH

a.

Secure the generator drive end frame in a vise between aluminum plates.


b.

Temporarily install the generator pulley with clutch to the rotor shaft.


c.

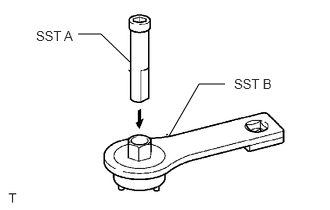

A284135N03
1.354,0.646 1.052,0.354 1.052,0.354 0.813,0.354 false 2.344,0.875 2.073,0.875 2.073,0.875 1.76,1.417 false 0.375,0.292 0.958,0.542 0.583,0.25 10 false SST A 2.438,0.792 2.99,1.063 0.552,0.271 10 false SST B

Install SST (A) to SST (B) as shown in the illustration.

SST
09820-63021


d.

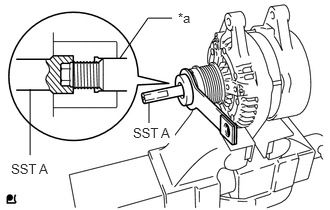

A204357C12
1.25,0.604 1.542,0.188 1.542,0.188 1.792,0.188 false 1.552,1.281 1.552,1.063 false 0.313,0.927 0.313,1.615 false 1.854,0.104 2.146,0.281 0.292,0.177 10 false *a 1.385,1.302 1.823,1.49 0.438,0.188 10 true SST A 0.115,1.677 0.677,1.906 0.563,0.229 10 false SST A
*a Rotor Shaft


Fit the rotor shaft end into SST (A).


e.

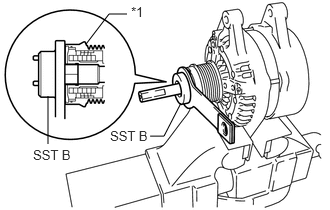

A378461C01
0.896,0.458 1.135,0.146 1.135,0.146 1.323,0.146 false 1.563,1.417 1.708,1.417 1.708,1.417 1.885,1.073 false 0.5,1.5 0.5,1 false 1.365,0.042 1.677,0.198 0.313,0.156 10 false *1 0.344,1.531 0.854,1.781 0.51,0.25 10 false SST B 1.146,1.333 1.656,1.583 0.51,0.25 10 false SST B
*1 Generator Pulley with Clutch


Fit SST (B) to the generator pulley with clutch.


f.

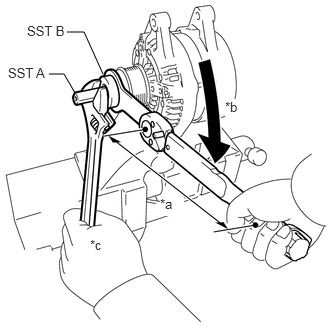

A337506C04
0.51,0.771 0.667,0.771 0.667,0.771 0.781,0.969 false 0.698,0.333 0.875,0.333 0.875,0.333 1.073,0.771 false 1.667,2.042 1.917,2.25 0.25,0.208 10 true *a 2.344,1.031 2.594,1.229 0.25,0.198 10 true *b 0.938,2.469 1.177,2.688 0.24,0.219 10 true *c 0.083,0.677 0.573,0.938 0.49,0.26 10 false SST A 0.281,0.24 0.771,0.5 0.49,0.26 10 false SST B
*a Torque Wrench Fulcrum Length
*b Turn
*c Hold


Tighten the generator pulley with clutch by turning SST (B) as shown in the illustration.

Torque:
Specified tightening torque : 80 N*m (816 kgf*cm, 59 ft.*lbf)

NOTICE:
·

Check that the generator drive end frame is secured in the vise tightly.

·

Hold SST (A) tightly during the operation.



HINT:
·

Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

When using SST (fulcrum length of 100 mm (3.94 in.)) + torque wrench (fulcrum length of 400 mm (1.312 ft.)): 64 N*m (653 kgf*cm, 47 ft.*lbf)




g.

Remove SST (A) and (B) from the generator pulley with clutch.


h.

Check that the generator pulley with clutch rotates smoothly.


i.

Remove the generator drive end frame from the vise.


Hide 27416 8.INSTALL GENERATOR PULLEY CAP

a.

Install a new generator pulley cap to the generator pulley with clutch.
