2ZR-FE STARTING ENGINE SWITCH INSPECTION
PROCEDURE
89611
1.INSPECT POWER SWITCH

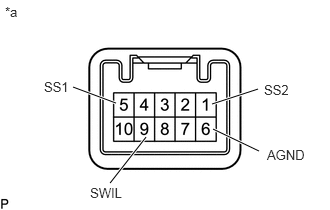

a.
0.76,0.906 1.208,1.073
true
2.208,1.083 2.688,0.927
true
2.219,1.344 2.698,1.573
true
1.146,1.906 1.521,1.427
true
0.052,0.042 0.365,0.198
0.313,0.156
10
*a
0.458,0.823 0.917,1.021
0.458,0.198
10
SS1
2.75,0.854 3.208,1.052
0.458,0.198
10
SS2
2.781,1.531 3.396,1.729
0.615,0.198
10
AGND
0.938,1.927 1.365,2.125
0.427,0.198
10
SWIL
| *a | Component without harness connected
(Power Switch) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 5 (SS1) - 6 (AGND)
1 (SS2) - 6 (AGND)Not pushed 10 kΩ or higher Pushed Below 1 Ω
If the result is not as specified, replace the power switch.
b.
Apply auxiliary battery voltage between the terminals of the power switch, and check the illumination condition of the power switch indicator light.
- OK:
Condition Specified Condition Auxiliary battery positive (+) → Terminal 9 (SWIL)
Auxiliary battery negative (-) → Terminal 6 (AGND)Illuminates
- HINT:
- ·
If the positive (+) lead and the negative (-) lead are incorrectly connected, the power switch indicator light will not illuminate.
·If the voltage is too low, the power switch indicator light will not illuminate.
If the result is not as specified, replace the power switch.
