LIGHTING (EXT)  RELAY  ON-VEHICLE INSPECTION


PROCEDURE

Hide 85916P 1.INSPECT H-LP RELAY

a.
E209495C15

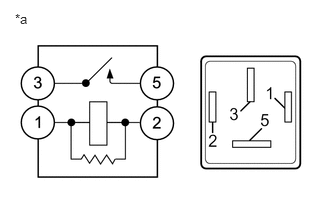

0.156,0.115 0.479,0.385 0.323,0.271 10 *a
*a Component without harness connected
(H-LP Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the H-LP relay.


Hide 85926 2.INSPECT DIM RELAY

a.
E209495C15
0.156,0.115 0.479,0.385 0.323,0.271 10 *a
*a Component without harness connected
(DIM Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the DIM relay.


Hide 85916D 3.INSPECT FR FOG RELAY (w/ Front Fog Light)

a.
E222294C31

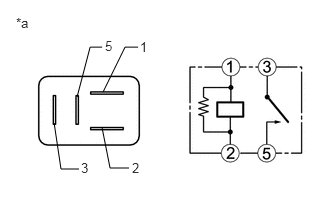

1.073,0.958 1.302,0.49 1.302,0.49 1.438,0.49 false 1.063,1.333 1.146,1.75 1.146,1.75 1.344,1.75 false 0.802,1.01 0.938,0.49 0.938,0.49 1.063,0.49 false 0.563,1.281 0.635,1.76 0.635,1.76 0.823,1.76 false 1.458,0.406 1.563,0.563 0.104,0.156 10 false 1 1.375,1.667 1.479,1.823 0.104,0.156 10 false 2 1.094,0.396 1.198,0.552 0.104,0.156 10 false 5 0.844,1.667 0.948,1.823 0.104,0.156 10 false 3 0.167,0.156 0.479,0.354 0.313,0.198 10 false *a
*a Component without harness connected
(FR FOG Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the FR FOG relay.


Hide 82642B 4.INSPECT DRL RELAY (w/ Daytime Running Light)

a.
E222294C31
1.073,0.958 1.302,0.49 1.302,0.49 1.438,0.49 false 1.063,1.333 1.146,1.75 1.146,1.75 1.344,1.75 false 0.802,1.01 0.938,0.49 0.938,0.49 1.063,0.49 false 0.563,1.281 0.635,1.76 0.635,1.76 0.823,1.76 false 1.458,0.406 1.563,0.563 0.104,0.156 10 false 1 1.375,1.667 1.479,1.823 0.104,0.156 10 false 2 1.094,0.396 1.198,0.552 0.104,0.156 10 false 5 0.844,1.667 0.948,1.823 0.104,0.156 10 false 3 0.167,0.156 0.479,0.354 0.313,0.198 10 false *a
*a Component without harness connected
(DRL Relay)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
3 - 5 Voltage not applied between terminals 1 and 2 10 kΩ or higher
3 - 5 Voltage applied between terminals 1 and 2 Below 1 Ω


If the result is not as specified, replace the DRL relay.
