K313 CVT  CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM  P2767  Input / Turbine Speed Sensor "B" Circuit No Signal


DESCRIPTION

The ECM detects the input shaft speed based on the signal from the transmission revolution sensor (NIN) and performs gear ratio control.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Memory
P2767 Input / Turbine Speed Sensor "B" Circuit No Signal 1. Diagnosis Condition 2. Malfunction Status 3. Malfunction Time 4. Other
1.

Driving with shift lever in D and output shaft speed 300 rpm or more (vehicle speed is approximately 7 km/h (4 mph) or more).

2.

The speed indicated by the transmission revolution sensor (NIN) is less than 300 rpm.

3.

2 seconds

4.

1-trip detection logic


·

Wire harness or connector

·

Transmission revolution sensor (NIN)

·

ECM


Comes on DTC stored

MONITOR DESCRIPTION

The ECM receives a signal from the transmission revolution sensor (NIN) installed in the continuously variable transaxle and determines the input shaft speed in order to control the gear ratio. If the ECM detects no signal from the transmission revolution sensor (NIN) even while the vehicle is moving, it will determine that there is a malfunction in the transmission revolution sensor (NIN). The ECM will then illuminate the MIL and store this DTC.

WIRING DIAGRAM

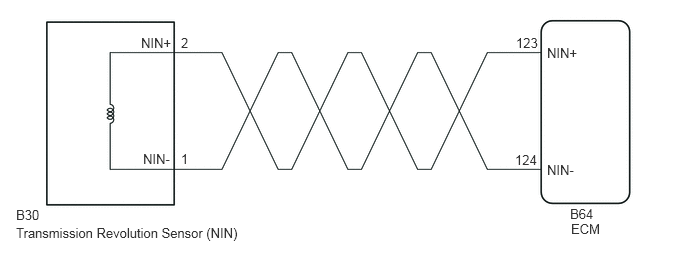

C264293E45
5.375,0.365 5.771,0.521 0.396,0.156 10 false 123 5.698,0.469 6.073,0.625 0.375,0.156 10 false NIN+ 5.365,1.583 5.719,1.729 0.354,0.146 10 false 124 5.698,1.688 6.073,1.844 0.375,0.156 10 false NIN- 5.938,2.146 6.365,2.354 0.427,0.208 10 false B64 5.948,2.302 6.323,2.51 0.375,0.208 10 false ECM 1.469,0.365 1.844,0.521 0.375,0.156 10 false NIN+ 1.49,1.573 1.865,1.729 0.375,0.156 10 false NIN- 1.885,0.365 1.99,0.531 0.104,0.167 10 false 2 1.885,1.573 1.99,1.74 0.104,0.167 10 false 1 0.167,2.156 0.583,2.333 0.417,0.177 10 false B30 0.167,2.344 2.51,2.552 2.344,0.208 10 false Transmission Revolution Sensor (NIN)

CAUTION / NOTICE / HINT

NOTICE:
·

Perform initialization when parts related to the continuously variable transaxle are replaced.

Click hereDrivetrain>K313 CVT>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>INITIALIZATION

·

Check that no DTCs are stored after performing initialization.

Click hereDrivetrain>K313 CVT>CONTINUOUSLY VARIABLE TRANSAXLE SYSTEM>DTC CHECK / CLEAR



PROCEDURE

1.READ VALUE USING GTS (SPD (NIN), ENGINE SPEED AND LOCK UP)
a.

Connect the GTS to the DLC3.


b.

Turn the ignition switch to ON.


c.

Turn the GTS on.


d.

Enter the following menus: Powertrain / Engine and ECT / Data List / Primary.


e.

According to the display on the GTS, read the Data List.

Powertrain > Engine and ECT > Data List
Tester Display Measurement Item Range Normal Condition Diagnostic Note
Engine Speed Engine speed min.: 0 rpm
max.: 16383 rpm
680 to 780 rpm: Engine Idling When the crankshaft position sensor is malfunctioning, "Engine Speed" is approximately 0 rpm or varies greatly from the actual engine speed.
SPD (NIN) Primary pulley speed (NIN) min.: 0 rpm
max.: 12750 rpm
·

0 rpm: Vehicle stopped

·

Equal to engine speed (NE): Lock-up ON (After warming up engine)


Data is displayed in increments of 50 rpm.
Lock Up Lock-up OFF or ON
·

ON: Lock-up operating

·

OFF: Lock-up not operating


-
Powertrain > Engine and ECT > Data List
Tester Display
Engine Speed
SPD (NIN)
Lock Up
50003 234 9,400,417

Result:
Result Proceed to
Data List values are not normal A
Data List values are normal B



A

2.INSPECT TRANSMISSION REVOLUTION SENSOR (NIN)

B

5.REPLACE ECM
2.INSPECT TRANSMISSION REVOLUTION SENSOR (NIN)
a.

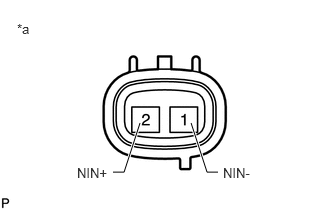

C221276C07
1.177,1.792 1.292,1.792 1.292,1.792 1.458,1.281 true 2.271,1.792 2.156,1.792 2.156,1.792 1.99,1.281 true 0.177,0.219 0.365,0.406 0.188,0.188 10 *a 0.802,1.719 1.156,1.896 0.354,0.177 10 NIN+ 2.323,1.719 2.646,1.875 0.323,0.156 10 NIN-
*a Component without harness connected
(Transmission Revolution Sensor (NIN))


Disconnect the B30 transmission revolution sensor (NIN) connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
1 (NIN-) - 2 (NIN+) 20°C (68°F) 560 to 680 Ω



c.

Connect the B30 transmission revolution sensor (NIN) connector.


Result:
Proceed to
OK
NG



OK

3.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NIN) - ECM)

NG

REPLACE TRANSMISSION REVOLUTION SENSOR (NIN)

3.CHECK HARNESS AND CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NIN) - ECM)
a.

Disconnect the B64 ECM connector.


b.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
B64-123 (NIN+) - B64-124 (NIN-) 20°C (68°F) 560 to 680 Ω
B64-123 (NIN+) - Body ground and other terminals Always 10 kΩ or higher
B64-124 (NIN-) - Body ground and other terminals Always 10 kΩ or higher



c.

Connect the B64 ECM connector.


Result:
Proceed to
OK
NG



OK

4.REPLACE ECM

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (TRANSMISSION REVOLUTION SENSOR (NIN) - ECM)

4.REPLACE ECM

Result:
Proceed to
NEXT



NEXT

5.REPLACE ECM

Result:
Proceed to
NEXT



NEXT
