Push the release hook knob and remove the mechanical key.

0.708,1.594 0.979,1.792 false 1.031,1.74 1.469,2.042 0.438,0.302 10 *a

*a	Protective Tape

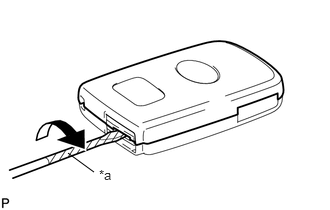

Insert a screwdriver into the gap, and turn the screwdriver to remove the transmitter housing cover.

HINT:

Tape the screwdriver tip before use.

Disengage the 2 claws and remove the transmitter battery housing cover.

0.865,0.74 1.26,0.427 false 1.323,0.333 1.604,0.615 0.281,0.281 10 false *a

*a	Protective Tape

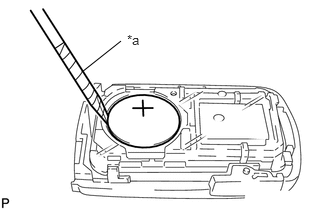

Insert a precision screwdriver into the gap and gently remove the transmitter battery.

NOTICE:

·

Do not push the terminals with your finger.

·

Do not forcibly pry up the transmitter battery as the terminals may be damaged.

·

Do not touch the transmitter battery with wet hands. Moisture may cause rust.

·

Do not touch or move any components inside the transmitter housing case. It may interfere with proper operation.

·

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.

HINT:

Tape the screwdriver tip before use.

Install a new transmitter battery with the positive (+) side facing upward, as shown in the illustration.

NOTICE:

·

Do not bend the transmitter battery electrode during installation.

·

Keep the inside of the transmitter housing cover free of dust and oil.

·

When replacing the transmitter battery, before starting work, remove static electricity that has built up in the body by touching, for example, the vehicle to prevent the electrical key transmitter sub-assembly from being damaged.

Engage the 2 claws to install the transmitter battery housing cover.

Install the transmitter housing cover by pressing down on it as shown in the illustration.

Insert the mechanical key into the transmitter.
