LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for Halogen Headlight)  DISASSEMBLY


PROCEDURE

Hide 81110B 1.REMOVE NO. 1 HEADLIGHT BULB

a.

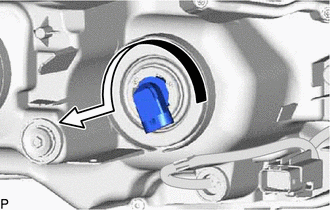

E372363

Turn the No. 1 headlight bulb as shown in the illustration to remove it.

NOTICE:

Do not touch the bulb glass.



Hide 81110D 2.REMOVE NO. 2 HEADLIGHT BULB

a.

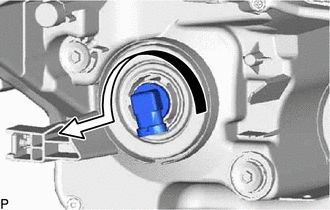

E372364

Turn the No. 2 headlight bulb as shown in the illustration to remove it.

NOTICE:

Do not touch the bulb glass.



Hide 81510D 3.REMOVE FRONT TURN SIGNAL LIGHT BULB

a.

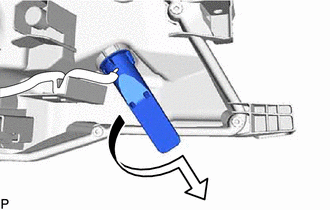

E352924

Turn the headlight cord with the front turn signal light bulb as shown in the illustration, and disconnect them as a unit.


b.

Remove the front turn signal light bulb from the headlight cord.


Hide 53182E 4.REMOVE HEADLIGHT COVER

a.

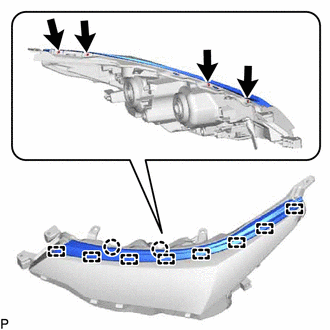

E372365

Remove the 4 screws.


b.

Disengage the 2 claws and 8 guides to remove the headlight cover.
