LIGHTING (EXT)  HEIGHT CONTROL SENSOR  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 89408B 3.REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY

a.

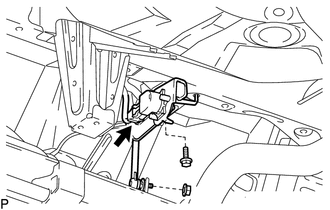

E282341

Disconnect the connector.


b.

Remove the bolt, nut and rear height control sensor sub-assembly.

NOTICE:

Do not drop the rear height control sensor sub-assembly. If it is dropped, replace it with a new one.
