LIGHTING (EXT) HEIGHT CONTROL SENSOR INSPECTION
PROCEDURE
89408B
1.INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY
a.
Connect 3 dry cell batteries (1.5 V) in series.
- NOTICE:
-
Do not use rechargeable batteries as they may not output a voltage of 1.5 V.
4.625,2.573 5.052,2.125
false
5.24,2.625 5.24,2.146
false
5.833,2.604 5.406,2.146
false
4.333,0.865 4.646,1.021
0.313,0.156
10
false
*a
2.052,0.521 2.365,0.677
0.313,0.156
10
false
*b
0.865,1.479 1.177,1.635
0.313,0.156
10
false
*c
1.583,2.885 1.896,3.042
0.313,0.156
10
false
*d
1.573,1.031 1.885,1.188
0.313,0.156
10
false
*e
1.042,1.74 1.354,1.896
0.313,0.156
10
false
*f
1.396,2.375 1.635,2.625
0.24,0.25
10
false
*g
4.406,2.625 4.802,2.833
0.396,0.208
10
false
SHB
5.083,2.646 5.552,2.938
0.469,0.292
10
false
SHRR
5.771,2.646 6.167,2.854
0.396,0.208
10
false
SHG

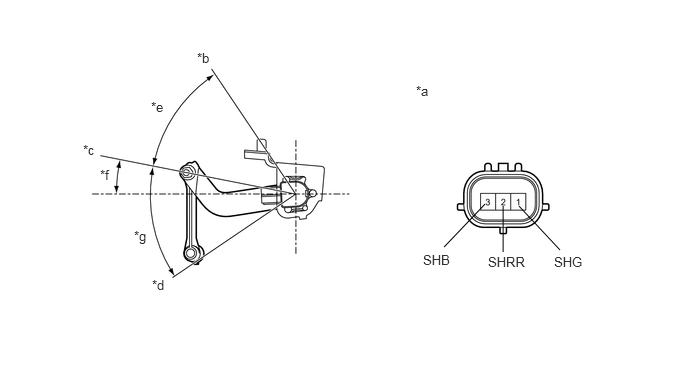

| *a | Component without harness connected
(Rear Height Control Sensor Sub-assembly) |
*b | Low |
| *c | Standard Position | *d | High |
| *e | -45° | *f | 11.4° |
| *g | +45° | - | - |
b.
Connect a positive (+) lead from the batteries to terminal 3 (SHB) and a negative (-) lead to terminal 1 (SHG).
c.
Measure the voltage between terminals 2 (SHRR) and 1 (SHG) while slowly moving the link up and down.
- Standard Voltage:
Tester Connection Condition Specified Condition 2 (SHRR) - 1 (SHG) +45° (High) 4.5 V 2 (SHRR) - 1 (SHG) 0° (Standard position) 2.25 V 2 (SHRR) - 1 (SHG) -45° (Low) 0.5 V
If the result is not as specified, replace the rear height control sensor sub-assembly.
