LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for LED Headlight)  ADJUSTMENT


PROCEDURE

Hide 1. PREPARE VEHICLE FOR HEADLIGHT AIM ADJUSTMENT

a.

Prepare the vehicle:

·

Ensure that there is no damage or deformation to the vehicle body around the headlights.

·

Fill the fuel tank.

·

Make sure that the oil is filled to the specified level.

·

Make sure that the engine coolant is filled to the specified level.

·

Inflate the tires to the appropriate pressure.

·

Unload the trunk and vehicle, ensuring that the spare tire, tools and jack are in their original positions.

·

Bounce the vehicle at the corners up and down to stabilize the suspension.

·

Sit a person of average weight (75 kg, 165 lb) in the driver's seat.



Hide 2. PREPARE FOR HEADLIGHT AIMING (Using a headlight aim test machine)

a.

Adjust the headlight aim in accordance with the headlight aim test machine instructions.


Hide 3. PREPARE FOR HEADLIGHT AIMING

a.

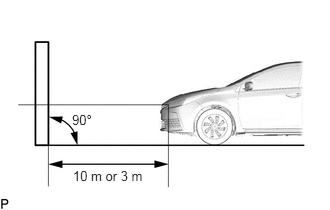

E352925E01
0.76,1.75 1.594,1.917 0.833,0.167 10 false 10 m or 3 m 0.75,1.167 1.167,1.417 0.417,0.25 10 false 90°

Prepare the vehicle:

·

Place the vehicle in a location that is dark enough to clearly observe the cutoff line. The cutoff line is a distinct line, below which light from the headlights can be observed and above which it cannot.

·

Place the vehicle at a 90° angle to the wall.

·

Create a 10 m (32.8 ft.) distance between the vehicle (center marks of the headlights) and the wall.

·

Make sure that the vehicle is on a level surface.

·

Position the front wheels straight ahead.

·

Bounce the vehicle up and down to settle the suspension.


NOTICE:

A distance of 10 m (32.8 ft.) between the vehicle (center marks of the headlights) and the wall is necessary for proper aim adjustment. If sufficient space is not available, secure a distance of exactly 3 m (9.84 ft.) to allow for checking and adjustment of headlight aim. (The size of the target zone will change with the distance, so follow the instructions in the illustration.)



b.

Prepare a piece of thick white paper (approximately 2 m (6.56 ft.) (height) x 4 m (13.1 ft.) (width)) to use as a screen.


c.

Draw a vertical line down the center of the screen (V line).


d.

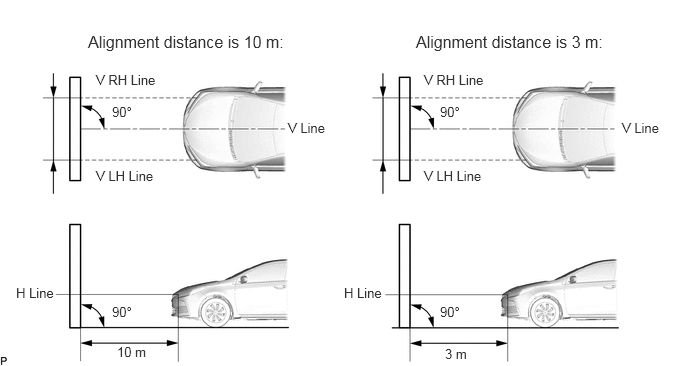

Set the screen as shown in the illustration:

E352926E01
0.917,0.333 3.083,0.583 2.167,0.25 12 false Alignment distance is 10 m: 4.333,0.333 6.5,0.583 2.167,0.25 12 false Alignment distance is 3 m: 1,0.75 1.75,1 0.75,0.25 10 false V RH Line 4.417,0.75 5.167,1 0.75,0.25 10 false V RH Line 1,1.75 1.75,2 0.75,0.25 10 false V LH Line 4.417,1.75 5.167,2 0.75,0.25 10 false V LH Line 0.167,2.969 0.917,3.219 0.75,0.25 10 false H Line 3.583,2.969 4.333,3.219 0.75,0.25 10 false H Line 1.167,1.083 1.625,1.281 0.458,0.198 10 false 90° 4.583,1.083 5.042,1.281 0.458,0.198 10 false 90° 4.583,3.167 5.042,3.365 0.458,0.198 10 false 90° 1.167,3.167 1.625,3.365 0.458,0.198 10 false 90° 3,1.25 3.667,1.5 0.667,0.25 10 false V Line 6.479,1.25 7.156,1.5 0.677,0.25 10 false V Line 1.219,3.583 1.833,3.781 0.615,0.198 10 false 10 m 4.635,3.604 5.25,3.802 0.615,0.198 10 false 3 m

HINT:
·

Stand the screen perpendicular to the ground.

·

Align the V line on the screen with the center of the vehicle.




e.
E257183C05
1.177,0.292 1.49,0.448 0.313,0.156 10 *a 1.844,0.302 2.156,0.458 0.313,0.156 10 *b 2.479,0.313 2.792,0.469 0.313,0.156 10 *c 2.969,0.875 3.281,1.031 0.313,0.156 10 *d 0.563,1.708 0.875,1.865 0.313,0.156 10 *e
*a V LH Line
*b V Line
*c V RH Line
*d H Line
*e Ground


Draw base lines (H, V LH, and V RH lines) on the screen as shown in the illustration.

HINT:
·

The base lines differ for "low beam inspection" and "high beam inspection".

·

Mark the headlight center marks on the screen.



i.

H Line (Headlight height):

Draw a horizontal line across the screen so that it passes through the center marks. The H line should be at the same height as the center marks of the headlights.


ii.

V LH Line, V RH Line (Center mark position of left-hand (LH) and right-hand (RH) headlights):

Draw 2 vertical lines so that they intersect the H line at each center mark (aligned with the center marks of the headlights).



Hide 4.INSPECT HEADLIGHT AIMING

a.

Cover the headlight or disconnect the connector on the opposite side to prevent light from the headlight that is not being inspected from affecting the headlight aiming inspection.

NOTICE:

Do not keep the headlight covered for more than 3 minutes. The headlight lens is made of synthetic resin, which may melt or be damaged due to excessive heat.


HINT:

When checking the aim of the high beam, cover the low beam or disconnect the connector.



b.

Start the engine.


c.

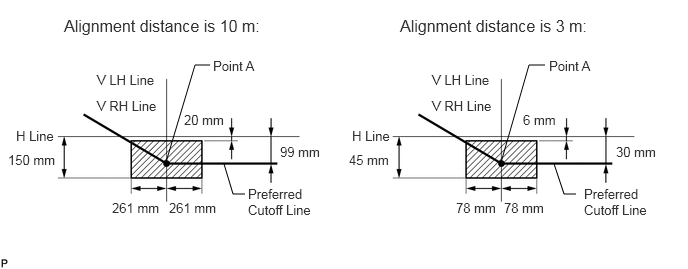

Turn on the headlights and check if the cutoff line for each low beam matches the preferred cutoff line in the illustration.

E217069E19
2.333,1.708 2.427,2.021 2.427,2.021 2.552,2.021 false 5.771,1.708 5.875,2.021 5.875,2.021 6,2.021 false 1.729,1.688 2.031,0.677 2.031,0.677 2.188,0.677 false 5.219,1.688 5.51,0.677 5.51,0.677 5.677,0.677 false 0.667,0.167 2.729,0.531 2.063,0.365 12 false Alignment distance is 10 m: 4.167,0.167 6.229,0.531 2.063,0.365 12 false Alignment distance is 3 m: 1.01,0.75 1.667,1.042 0.656,0.292 10 false V LH Line 0.167,1.333 0.594,1.635 0.427,0.302 10 false H Line 6.417,1.5 6.875,1.813 0.458,0.313 10 false 30 mm 2.917,1.5 3.406,1.813 0.49,0.313 10 false 99 mm 0.083,1.583 0.615,1.896 0.531,0.313 10 false 150 mm 1.917,1.167 2.365,1.479 0.448,0.313 10 false 20 mm 2.583,1.938 3.26,2.594 0.677,0.656 10 false Preferred Cutoff Line 6.083,1.938 6.76,2.583 0.677,0.646 10 false Preferred Cutoff Line 1.167,2.083 1.708,2.396 0.542,0.313 10 false 261 mm 5.25,2.083 5.708,2.396 0.458,0.313 10 false 78 mm 4.75,2.083 5.208,2.396 0.458,0.313 10 false 78 mm 1.76,2.083 2.333,2.396 0.573,0.313 10 false 261 mm 3.667,1.333 4.094,1.635 0.427,0.302 10 false H Line 3.635,1.583 4.083,1.896 0.448,0.313 10 false 45 mm 5.448,1.167 5.833,1.479 0.385,0.313 10 false 6 mm 2.219,0.604 2.688,0.917 0.469,0.313 10 false Point A 1.01,1.021 1.667,1.333 0.656,0.313 10 false V RH Line 4.5,0.75 5.156,1.042 0.656,0.292 10 false V LH Line 4.5,1.021 5.156,1.333 0.656,0.313 10 false V RH Line 5.719,0.604 6.188,0.917 0.469,0.313 10 false Point A

HINT:
·

Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.

·

If the alignment distance is 10 m (32.8 ft.):

The low beam cutoff line should be between 20 mm (0.756 in.) and 150 mm (5.90 in.) below the H line as well as 261 mm (10.3 in.) left or right of the V LH or V RH line.

·

If the alignment distance is 3 m (9.84 ft.):

The low beam cutoff line should be between 6 mm (0.227 in.) and 45 mm (1.77 in.) below the H line as well as 78 mm (3.07 in.) left or right of the V LH or V RH line.

·

If the alignment distance is 10 m (32.8 ft.):

The horizontal line of the preferred low beam cutoff line is 99 mm (3.92 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.

·

If the alignment distance is 3 m (9.84 ft.):

The horizontal line of the preferred low beam cutoff line is 30 mm (1.18 in.) below the H line and point A of the preferred low beam cutoff line is on the V LH or V RH line.




d.

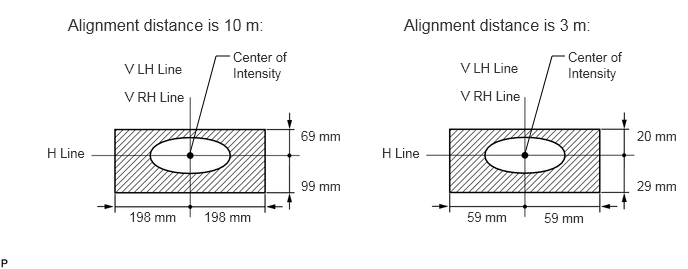

Turn on the high beams and check if the center of intensity for each high beam matches the center of intensity in the illustration.

E235330C03
1.979,1.594 2.25,0.583 2.25,0.583 2.396,0.583 false 5.469,1.594 5.75,0.583 5.75,0.583 5.885,0.583 false 0.708,0.156 2.771,0.521 2.063,0.365 12 Alignment distance is 10 m: 4.208,0.156 6.271,0.521 2.063,0.365 12 Alignment distance is 3 m: 1.302,0.635 1.958,0.948 0.656,0.313 10 V LH Line 0.49,1.51 0.917,1.813 0.427,0.302 10 H Line 5.667,2.188 6.125,2.5 0.458,0.313 10 59 mm 4.865,2.177 5.323,2.49 0.458,0.313 10 59 mm 2.125,2.177 2.667,2.49 0.542,0.313 10 198 mm 1.344,2.177 1.885,2.49 0.542,0.313 10 198 mm 3.979,1.51 4.406,1.813 0.427,0.302 10 H Line 6.635,1.854 7.115,2.167 0.479,0.313 10 29 mm 6.635,1.333 7.115,1.646 0.479,0.313 10 20 mm 3.135,1.854 3.615,2.167 0.479,0.313 10 99 mm 3.135,1.333 3.615,1.646 0.479,0.313 10 69 mm 2.427,0.51 3.052,1.156 0.625,0.646 10 Center of Intensity 5.917,0.51 6.51,1.177 0.594,0.667 10 Center of Intensity 1.302,0.927 1.958,1.292 0.656,0.365 10 V RH Line 4.802,0.625 5.458,0.938 0.656,0.313 10 V LH Line 4.802,0.917 5.458,1.281 0.656,0.365 10 V RH Line

HINT:
·

Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.

·

If the alignment distance is 10 m (32.8 ft.):

The high beam center of intensity should be between 69 mm (2.74 in.) above and 99 mm (3.91 in.) below the H line as well as 198 mm (7.83 in.) left or right of the V LH or V RH line.

·

If the alignment distance is 3 m (9.84 ft.):

The high beam center of intensity should be between 20 mm (0.824 in.) above and 29 mm (1.17 in.) below the H line as well as 59 mm (2.35 in.) left or right of the V LH or V RH line.




Hide 5.ADJUST HEADLIGHT AIMING

a.

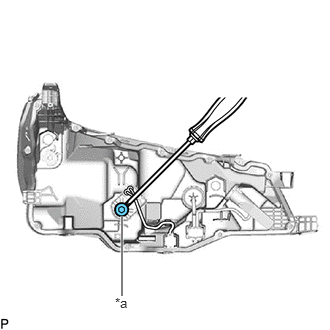

E352937C01
1.271,3.083 1.271,2.25 true 1.198,3.073 1.51,3.229 0.313,0.156 10 false *a
*a Aiming Screw (A)


Adjust the aim vertically:

Adjust the aim of each headlight to the specified range by turning each aiming screw (A) with a screwdriver.

NOTICE:

The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.


HINT:
·

Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.

·

If it is not possible to correctly adjust headlight aim, check the headlight unit installation.

·

The headlight aim moves down when turning the aiming screw clockwise, and moves up when turning the aiming screw counterclockwise.

·

Confirm the direction of rotation of the aiming screw by observing it while it is being adjusted. Due to the position of the screwdriver, the direction of rotation of the adjusting screw can be different than the direction of rotation of the screwdriver being used to adjust it.




b.

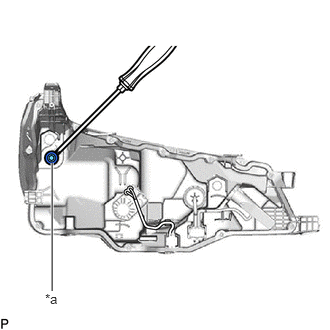

E352938C01
0.542,3.031 0.542,1.698 true 0.469,3.031 0.781,3.188 0.313,0.156 10 false *a
*a Aiming Screw (B)


Adjust the aim horizontally:

Adjust the aim of each headlight to the specified range by turning each aiming screw (B) with a screwdriver.

NOTICE:

The final turn of the aiming screw should be made in the clockwise direction. If the screw is tightened excessively, loosen it and then retighten it, so that the final turn of the screw is in the clockwise direction.


HINT:
·

Since the low beam light and the high beam light are a unit, if the aim on the low beam is correct, the high beam should also be correct. However, check both beams just to make sure.

·

If it is not possible to correctly adjust headlight aim, check the headlight unit installation.

·

Confirm the direction of rotation of the aiming screw by observing it while it is being adjusted. Due to the position of the screwdriver, the direction of rotation of the adjusting screw can be different than the direction of rotation of the screwdriver being used to adjust it.
