Secure the steering column assembly in a vise using aluminum plates, cloths and wooden blocks.

NOTICE:

Do not overtighten the vise.

1.875,1.031 2.552,1.031 true 2.615,0.958 3.073,1.156 0.458,0.198 10 SST

Using SST and a torque wrench, turn the steering main shaft at a constant rate of approximately 1 revolution every 4 seconds and measure the preload.

SST

09616-00011

Preload:

0.8 to 1.4 N*m (8 to 14 kgf*cm, 7 to 12 in.*lbf)

HINT:

If the preload is not as specified, replace the power steering motor assembly or electric power steering column sub-assembly with a new one.

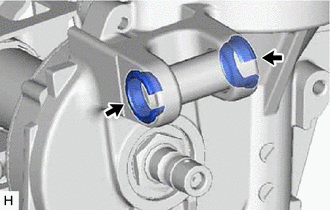

Check that the 2 bushings are securely installed to the steering column assembly.

HINT:

If the bushings are deformed, missing or damaged, replace the electric power steering column sub-assembly with a new one.

1.177,0.573 1.354,0.573 false 2.708,0.573 2.885,0.573 false 1.396,0.51 1.708,0.667 0.313,0.156 10 *1 2.917,0.51 3.229,0.667 0.313,0.156 10 *1 0.885,1.01 1.198,1.167 0.313,0.156 10 *a 2.438,1.031 2.75,1.188 0.313,0.156 10 *b

*1	Capsule
*a	OK
*b	NG

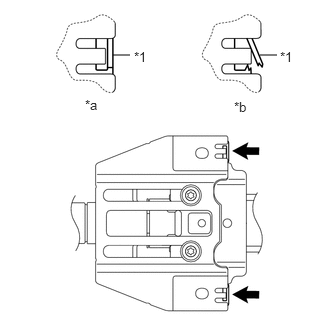

Check that the 2 capsules are securely installed to the electric power steering column sub-assembly as shown in the illustration.

HINT:

If the capsules are deformed, damaged or misaligned, replace the electric power steering column sub-assembly with a new one.
