BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  FRONT SPEED SENSOR  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the LH side and RH side.

·

The following procedure is for the LH side.

·

If the front speed sensor rotor needs to be replaced, replace the front drive shaft assembly.



PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>INITIALIZATION


Hide 3.REMOVE FRONT WHEEL

Click hereSuspension>TIRE / WHEEL>TIRE AND WHEEL>REMOVAL

Hide 53876A 4.SEPARATE FRONT FENDER LINER

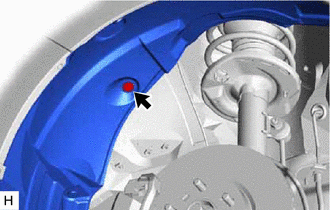

a.
C289433

Remove the clip and separate the front fender liner.


Hide 89543 5.REMOVE FRONT SPEED SENSOR

a.

Turn back the front fender liner.

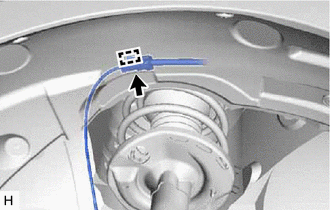

b.
C289434

Disconnect the connector and disengage the clamp.

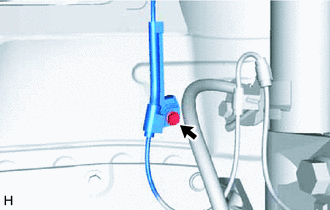

c.
C290748

Remove the bolt and separate the front speed sensor clamp.


d.
C290744

Remove the bolt, front flexible hose and front speed sensor clamp from the flexible hose bracket.

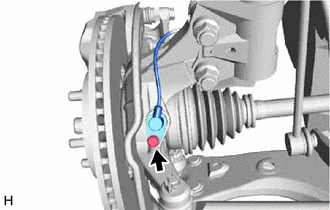

e.
C290745

Remove the bolt and front speed sensor from the steering knuckle.

NOTICE:
·

Prevent foreign matter from attaching to the front speed sensor tip.

·

Clean the speed sensor installation hole and the contact surfaces every time the front speed sensor is removed.
