STEERING COLUMN  STEERING COLUMN ASSEMBLY  DISASSEMBLY


PROCEDURE

Hide 1.REMOVE STEERING COLUMN PROTECTOR (for Manual Transaxle)

a.

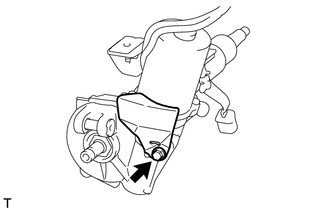

C234882

Remove the bolt and steering column protector.


Hide 2.REMOVE UPPER STEERING COLUMN BRACKET WITH SWITCH ASSEMBLY

a.

Secure the steering column assembly in a vise between aluminum plates.

NOTICE:

Do not overtighten the vise.



b.

Using a drill, drill a hole in the steering lock set bolt and insert a screw extractor.


c.

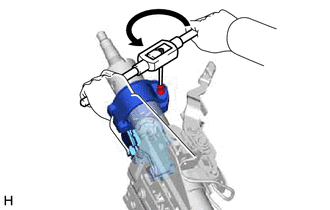

C289330

Using the screw extractor, remove the steering lock set bolt and upper steering column bracket with switch assembly.


Hide 81870D 3.REMOVE KEY CYLINDER LIGHT ASSEMBLY (w/o Engine Immobiliser System)

a.

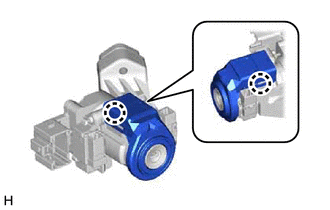

C289331

Disengage the 2 claws and remove the key cylinder light assembly.


Hide 89782 4.REMOVE TRANSPONDER KEY COIL (w/ Engine Immobiliser System)

HINT:

Perform the same procedure as for the key cylinder light assembly.


Hide 84450 5.REMOVE IGNITION OR STARTER SWITCH ASSEMBLY

a.

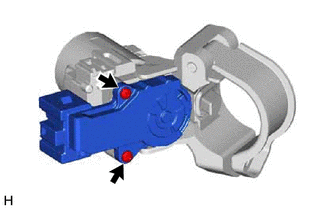

C289332

Remove the 2 screws and ignition or starter switch assembly from the upper steering column bracket assembly.


Hide 85432 6.REMOVE KEY INTERLOCK SOLENOID (for Automatic Transaxle and CVT)

a.

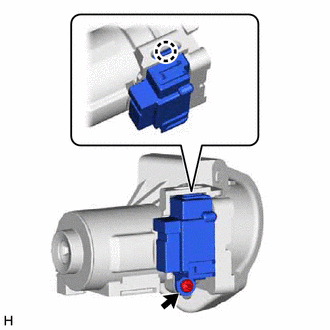

C289333

Remove the screw.


b.

Disengage the claw to remove the key interlock solenoid from the upper steering column bracket assembly.


Hide 84052 7.REMOVE UN-LOCK WARNING SWITCH ASSEMBLY

a.

Insert the key.


b.

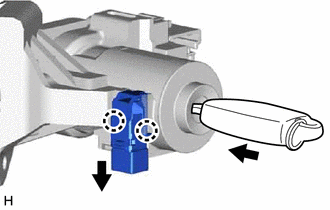

C303104

Remove the un-lock warning switch assembly by releasing the 2 claws.

HINT:

Slide the un-lock warning switch in the direction shown by the arrow in the illustration to remove it.



Hide 80960 8.REMOVE POWER STEERING MOTOR ASSEMBLY

NOTICE:
·

Do not drop the power steering motor assembly, strike it with tools or subject it to impacts.

·

If the power steering motor assembly is subjected to an impact, replace it with a new one.

·

Do not pull the wire harness of the power steering motor assembly.

·

Do not allow any moisture to come into contact with the power steering motor assembly.

·

Do not loosen any bolts not mentioned in the procedure.

·

Do not allow any foreign matter to contaminate the power steering motor assembly.



a.

Cut the clamp.


b.

Remove the tape.


c.

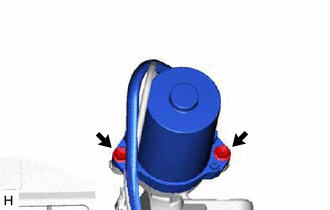

C269252

Remove the 2 bolts and power steering motor assembly from the electric power steering column sub-assembly.
