HEATING / AIR CONDITIONING  FRONT BLOWER MOTOR  REMOVAL


PROCEDURE

Hide 87103B 1.REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY (for Manual Air Conditioning System)

a.

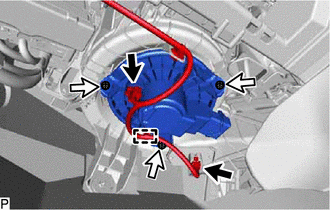

E260997

Disconnect the 2 connectors.


b.

Disengage the clamp.


c.

Remove the 3 screws and blower motor with fan sub-assembly.


Hide 87103B 2.REMOVE BLOWER MOTOR WITH FAN SUB-ASSEMBLY (for Automatic Air Conditioning System)

a.

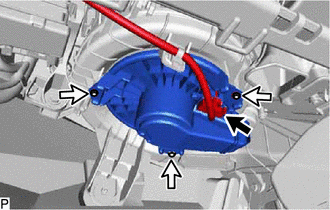

E260996

Disconnect the connector.


b.

Remove the 3 screws and blower motor with fan sub-assembly.
