2ZR-FE BATTERY / CHARGING  GENERATOR  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Hide 11212 3.REMOVE NO. 2 CYLINDER HEAD COVER

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 27020 5.REMOVE GENERATOR ASSEMBLY

a.
A258120

Remove the terminal cap.


b.

Remove the nut and disconnect the wire harness from terminal B.


c.

Disconnect the generator assembly connector and disengage the wire harness clamp.


d.
A282535

Remove the 2 bolts and adjusting bar.


e.
A282536

Remove the bolt and generator assembly.


f.
A315178

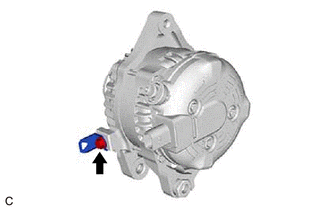

Remove the bolt and wire harness clamp bracket.
