2ZR-FE STARTING  STARTER  REMOVAL


PROCEDURE

Hide 1. PRECAUTION

NOTICE:

After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


Hide 2.DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

Hide 51441C 4.REMOVE ENGINE UNDER COVER RH

Click hereEngine / Hybrid System>2ZR-FE ENGINE MECHANICAL>ENGINE ASSEMBLY>REMOVAL

Hide 28100 5.REMOVE STARTER ASSEMBLY

a.

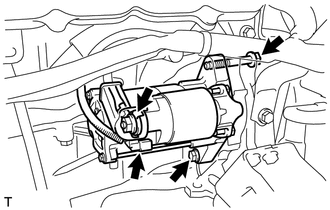

A153146

Open the terminal cap.


b.

Remove the nut and disconnect terminal 30.


c.

Disconnect the starter assembly connector.


d.

Remove the 2 bolts and starter assembly.
